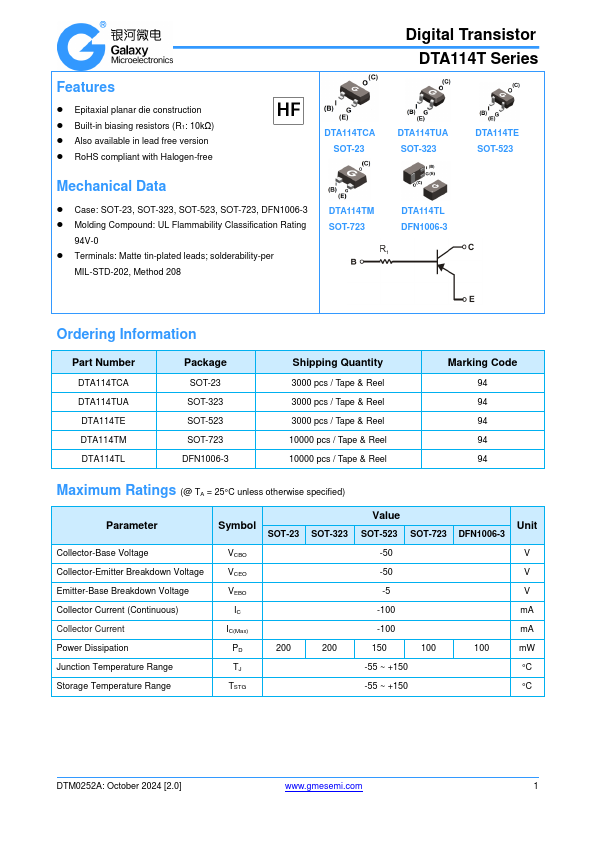

Digital Transistor
FEATURES
z Epitaxial planar die construction. z PNP expitaxial planar silicon transistor z Also available in lead free version.
APPLICATIONS
z The NPN style digital transistor.
Pb
Lead-free
Production specification
DTA114TUA
ORDERING INFORMATION
Type No.
Marking
DTA114TUA
94
SOT-323
Package Code SOT-323
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol
Parameter
Value
VCBO VCEO VEBO IC(Max.) PD RθJA
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Thermal Resistance, Junction to Ambient Air
-50 -50 -5 -100 200 625
Tj,Tstg
Operating and Storage and Temperature Range -55 to +150
Units V V V mA mW ℃/W ℃
F074 Rev.A
www.gmicroelec.
DTA114TUA Datasheet
