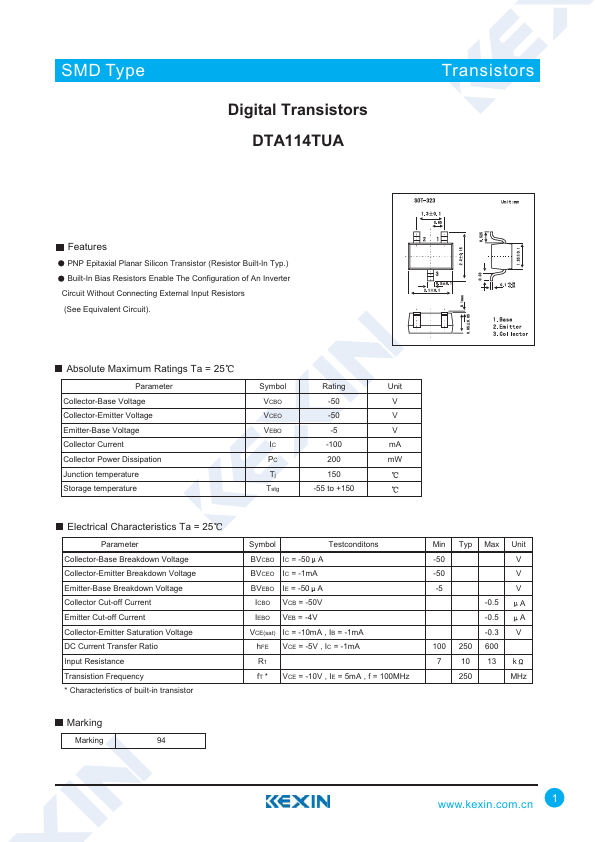

DTA114TUA Datasheet Digital Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Digital Transistors DTA114TUA Transistors.

Key Features

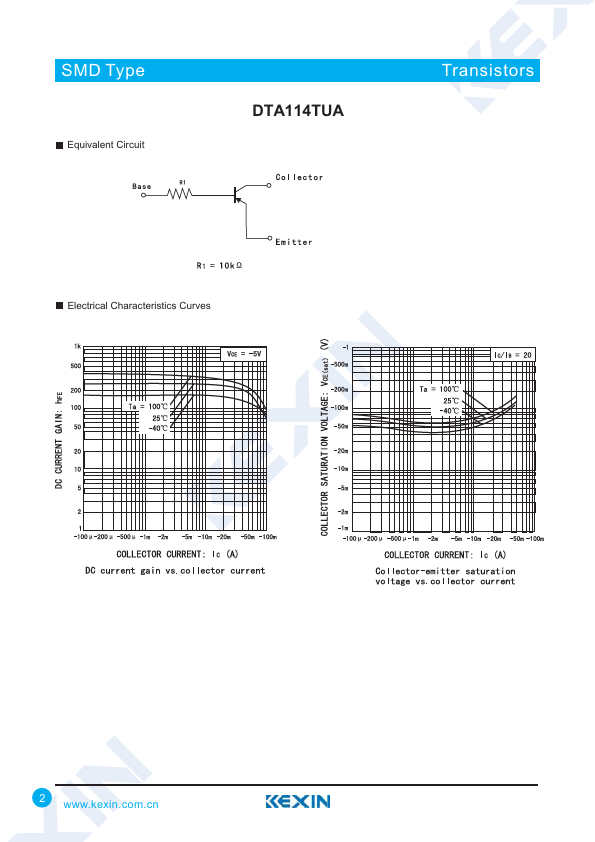

  • PNP Epitaxial Planar Silicon Transistor (Resistor Built-In Typ. ) Built-In Bias Resistors Enable The Configuration of An Inverter Circuit Without Connecting External Input Resistors (See Equivalent Circuit). Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -50 V VCEO -50 V VEBO -5 V IC -100 mA PC 200 mW.
