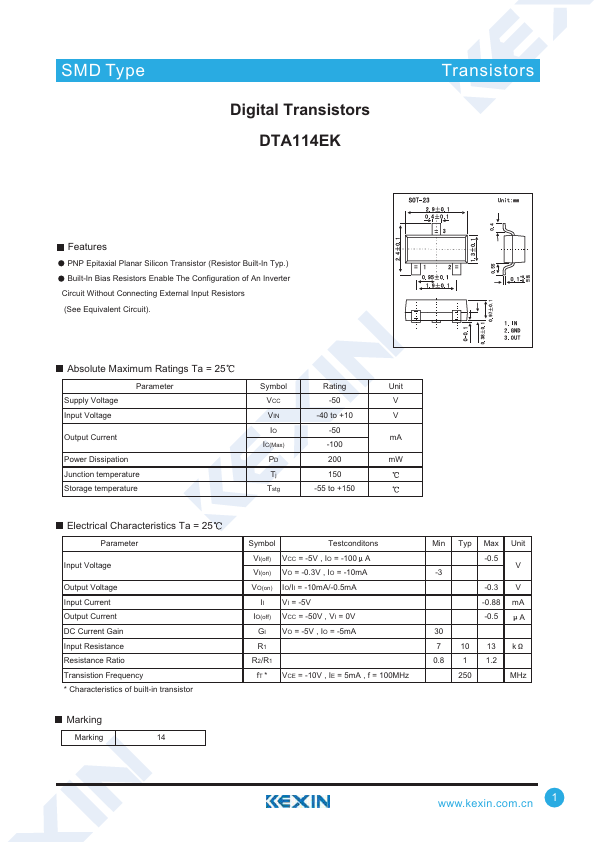

DTA114EK
DTA114EK is Digital Transistors manufactured by Kexin Semiconductor.
Features
PNP Epitaxial Planar Silicon Transistor (Resistor Built-In Typ.) Built-In Bias Resistors Enable The Configuration of An Inverter Circuit Without Connecting External Input Resistors (See Equivalent Circuit).
Absolute Maximum Ratings Ta = 25
Supply Voltage Input Voltage
Parameter
Output Current
Power Dissipation Junction temperature Storage temperature
Symbol
Rating
Unit
-50
-40 to +10
-50 m A
IC(Max)
-100
200 m W
Tj
Tstg
-55 to +150
Electrical Characteristics Ta = 25
Parameter
Input Voltage
Output Voltage Input Current Output Current DC Current Gain Input Resistance Resistance Ratio Transistion Frequency
- Characteristics of built-in transistor
Marking
Marking
Symbol
Testconditons
VI(off) VCC = -5V , IO = -100 A
VI(on) VO = -0.3V , IO = -10m A
VO(on) IO/II = -10m A/-0.5m A
II VI =...
