Kexin Electronics DTA114TM
Digital Transistors
| Part No. | DTA114TM |
|---|---|
| Datasheet | DTA114TM Download |
| Manufacturer | Kexin Electronics |
| Description | Digital Transistors |
| Buy | Stock & Price |
FEATURES

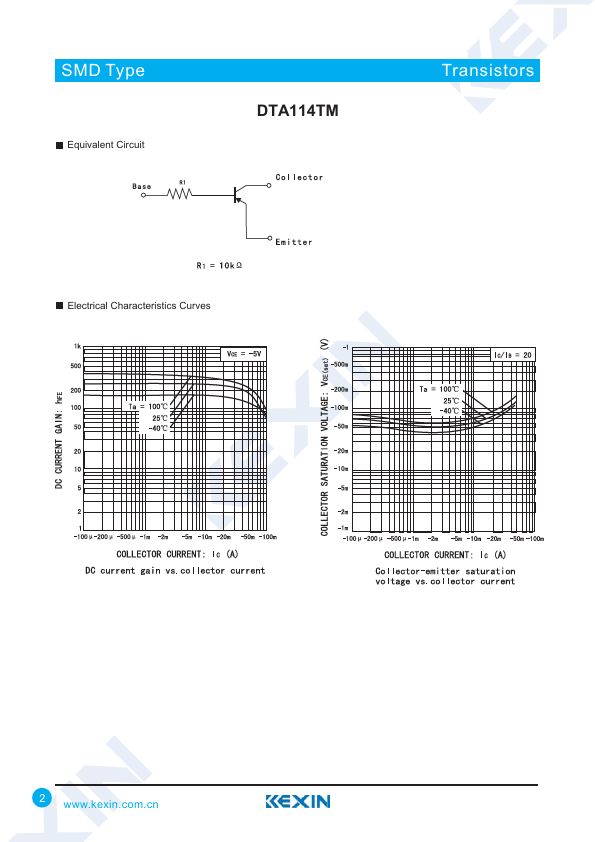

PNP Epitaxial Planar Silicon Transistor (Resistor Built-In Typ.) Built-In Bias Resistors Enable The Configuration of An Inverter Circuit Without Connecting External Input Resistors (See Equivalent Circuit).ABSOLUTE MAXIMUM RATINGS
Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction temperature Storage temperature Symbol Rating Unit VCBO -50 V VCEO -50 V VEBO -5 V IC -100 mA PC 150 mW Tj 150 Tstg -55 to +150ELECTRICAL CHARACTERISTICS
Ta = 25 Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Cut-off Current Emitter Cut-off Current Collector-Emitter Saturation Voltage DC Current Transfer Ratio Input Resistance Transistion Frequency * Characteristics of built-in transistor Marking Marking 94 Symbol Testconditons BVCBO IC = -50 A BVCEO IC = -1mA BVEBO IE = -50 A ICBO VCB = -50V IEBO VEB = -4V VCE(sat) IC = -10mA , IB = -1...
