DTA123YE
DTA123YE is Digital Transistor manufactured by Galaxy Microelectronics.
- Part of the DTA113ZE comparator family.
- Part of the DTA113ZE comparator family.
FEATURES
- Epitaxial planar die construction
- plementary NPN types available(DTC)
- Built-in biasing resistors,R1≠R2
- Also available in lead free version

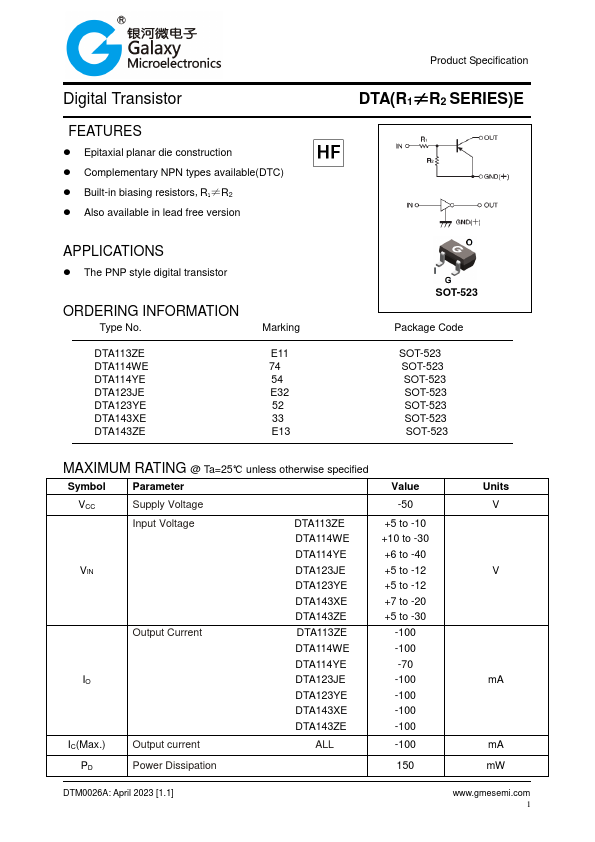

Product Specification
DTA(R1≠R2 SERIES)E
APPLICATIONS
- The PNP style digital transistor
ORDERING INFORMATION
Type No.
DTA113ZE DTA114WE DTA114YE DTA123JE DTA123YE DTA143XE DTA143ZE
Marking
E11 74 54 E32 52 33 E13
SOT-523
Package Code
SOT-523 SOT-523 SOT-523 SOT-523 SOT-523 SOT-523 SOT-523
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Symbol Parameter
Supply Voltage
Input Voltage VIN
Output Current IO
DTA113ZE DTA114WE DTA114YE DTA123JE DTA123YE DTA143XE DTA143ZE DTA113ZE DTA114WE DTA114YE DTA123JE DTA123YE DTA143XE DTA143ZE
IC(Max.)
Output current
Power Dissipation
Value
-50
+5 to -10 +10 to -30 +6 to -40 +5 to -12 +5 to -12 +7 to -20 +5 to -30
-100 -100 -70 -100 -100 -100 -100
-100
DTM0026A: April 2023 [1.1]
Units V
V m A m A m W
.gmesemi. 1
