DTA123YE
DTA123YE is Digital Transistors manufactured by Kexin Semiconductor.
Features
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors(see equivalent circuit)
- The bias resistors consist of thin-film resistors with plete isolation to allow positive biasing of the input.They also have the advantage of almost pletely eliminating parasitic effects
- Only the on/off conditions need to be set for operation, making device design easy
SOT-523
1.6 +0.1 -0.1
1.0 +0.1 -0.1
0.2 +0.05 -0.05
U nit: m m 0.15±0.05
0.55 (REF.)
0.8±0.1
+0.15 1.6 -0.15
0.36±0.1
3 0.5 +0.1
-0.1
0.3±0.05
+0.05 0.75 -0.05 +0.1 0.8 -0.1
1. IN 2. GND 3. OUT
- Absolute Maximum Ratings Ta = 25℃
Parameter Supply Voltage Input Voltage Output Current Power Dissipation Junction Temperature Storage Temperature range
Symbol VCC VIN IO PD TJ Tstg
Rating -50
-12~+5 -100 150 150
-55 to 150
Unit V m A m W ℃
- Electrical Characteristics Ta = 25℃
Parameter
Symbol
Test Conditions
Input voltage
VI(off) VI(on)
Vcc= -5 V , IO=-100 u A Vo= -0.3 V , IO=-20 m A
Output voltage
VO(on) IO= -10 m A， II=-0.5 m A
Input current
VI= -5 V

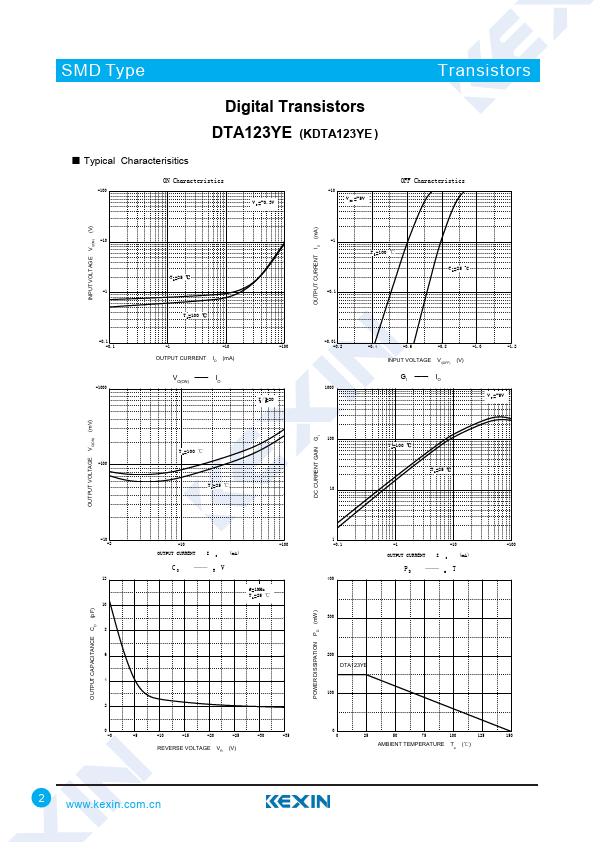

Output...
