DTA143XUA Datasheet Digital Transistor

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

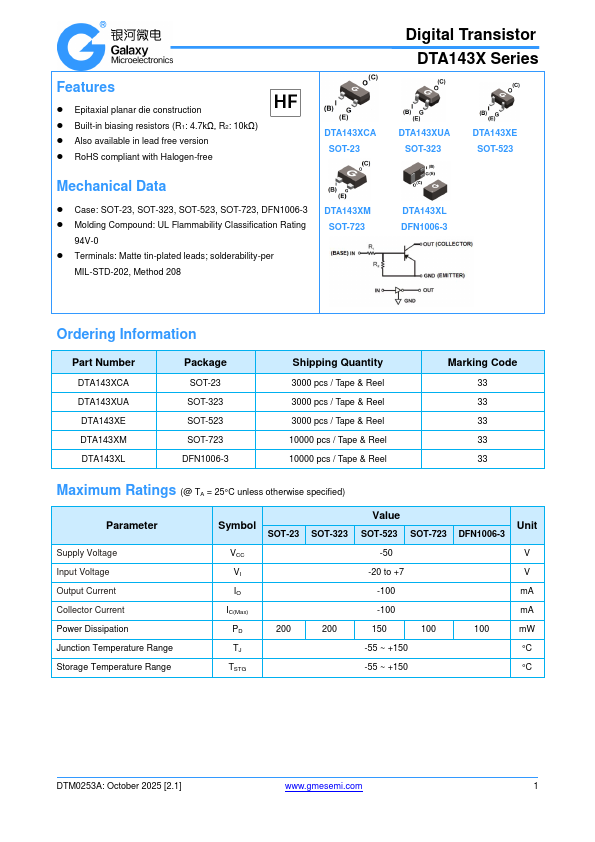

Key Features

  • Epitaxial planar die construction.
  • Built-in biasing resistors (R1: 4.7kΩ, R2: 10kΩ).
  • Also available in lead free version.
  • RoHS compliant with Halogen-free Digital Transistor DTA143X Series DTA143XCA SOT-23 DTA143XUA SOT-323 DTA143XE SOT-523 Mechanical Data.
  • Case: SOT-23, SOT-323, SOT-523, SOT-723, DFN1006-3.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 DTA143X.
