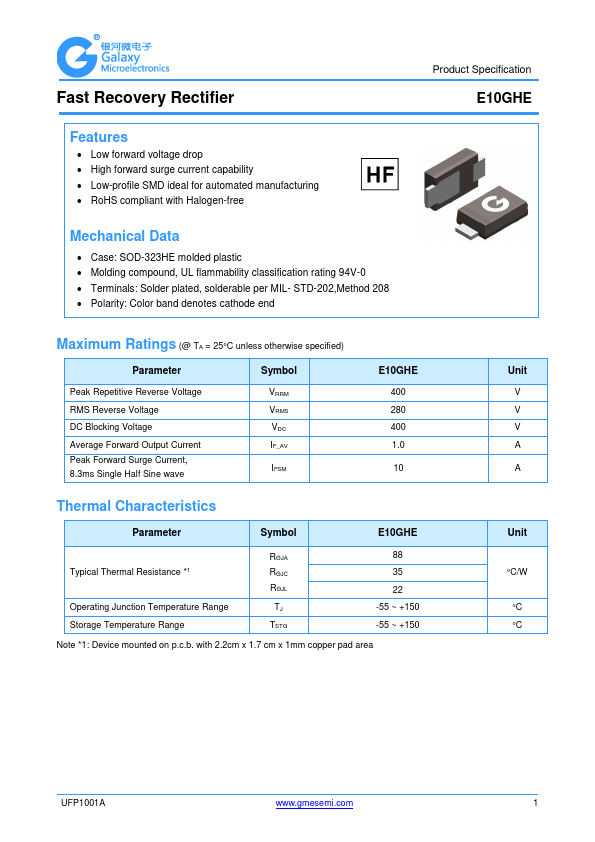

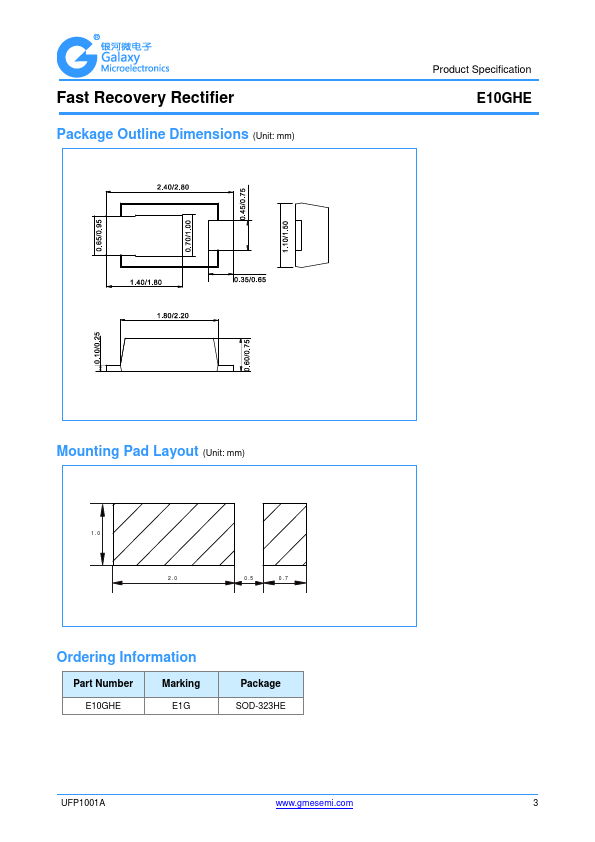

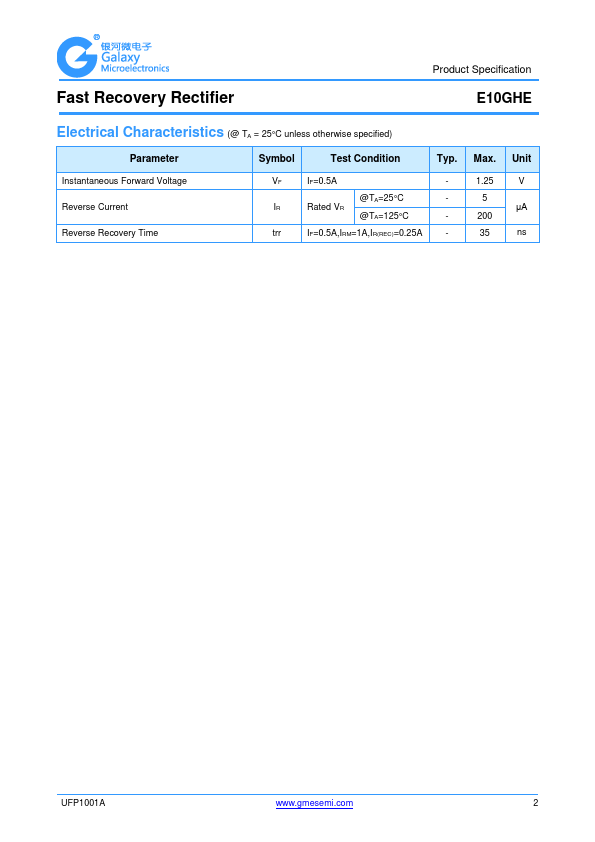

Fast Recovery Rectifier Product Specification Features - Low forward voltage drop - High forward surge current capability - Low-profile SMD ideal for automated manufacturing - Ro HS pliant with Halogen-free Mechanical Data - Case: SOD-323HE molded plastic - Molding pound, UL flammability classification rating 94V-0 - Terminals: Solder plated, solderable per MIL- STD-202,Method 208 - Polarity: Color band denotes cathode end Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Peak Repetitive Reverse Voltage RMS Reverse Voltage DC Blocking Voltage Average Forward Output Current Peak Forward Surge Current, 8.3ms Single Half Sine wave Symbol VRRM VRMS VDC IF_AV IFSM E10GHE 400 280 400 1.0 Thermal Characteristics Parameter Symbol Typical Thermal Resistance - 1 Operating Junction Temperature Range Storage Temperature Range RΘJA RΘJC RΘJL TJ TSTG 88 35 22 -55 ~ +150 -55 ~ +150 Note - 1: Device mounted on p.c.b. with 2.2cm x 1.7 cm x 1mm copper pad area Unit V V V A...
