ESD5Z2.5 Datasheet (Galaxy Microelectronics)

Part ESD5Z2.5
Description Single Line TVS Diode
Category Diode
Manufacturer Galaxy Microelectronics
Size 301.50 KB
ESD5Z2.5 Datasheet (PDF) Download
Pricing from 0.02259 USD, available from Avnet and Newark.Powered by Octopart
🏠
Galaxy Microelectronics

ESD5Z2.5 Overview

Key Specifications

Package: SOD-523-2
Pins: 2
Operating Voltage: 2.5 V
Height: 700 µm

Key Features

  • ESD / transient protection of high speed data lines
  • Low reverse stand-off voltage: 2.5V-12V
  • Very low leakage current
  • RoHS compliant with Halogen-free Single Line TVS Diode ESD5ZXX Mechanical Data
  • Case: SOD-523

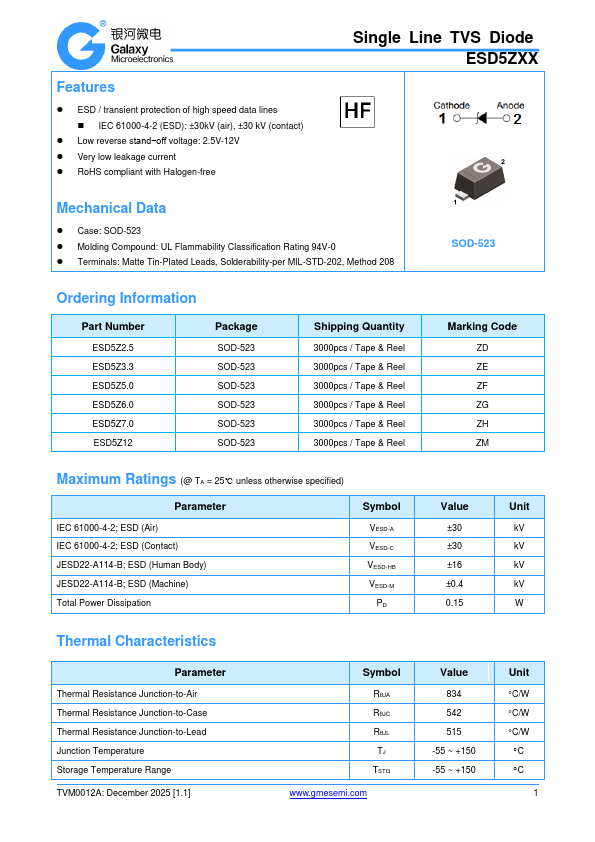

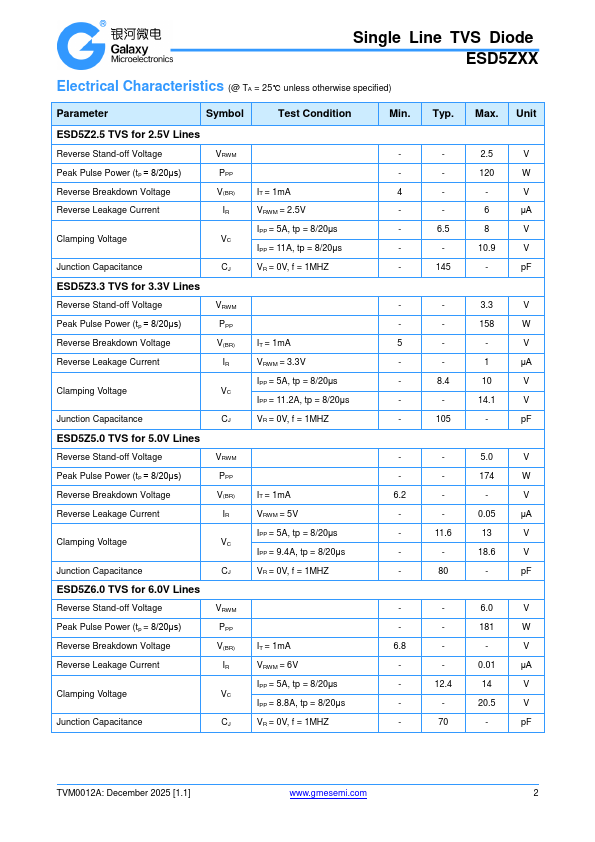

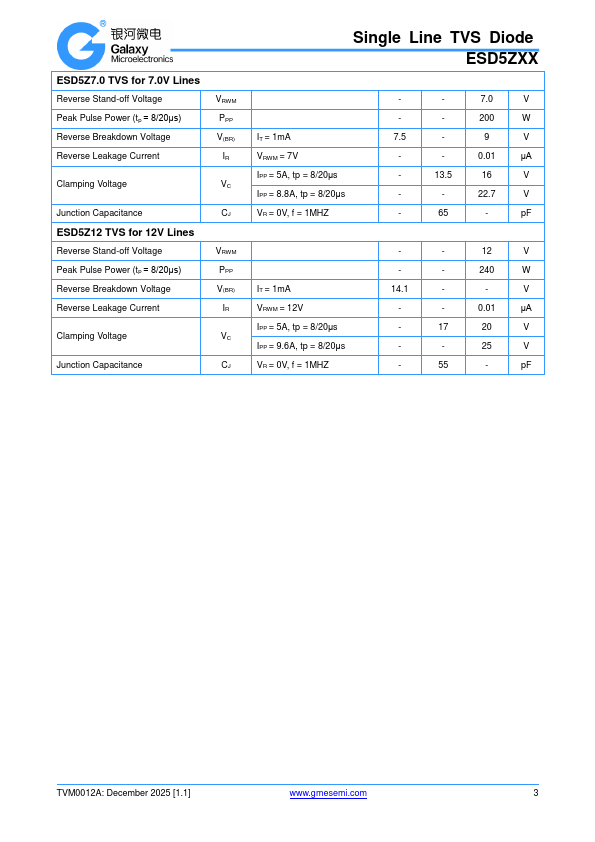

ESD5Z2.5 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 15000 3000+ : 0.02259 USD
6000+ : 0.0218 USD
12000+ : 0.02149 USD
24000+ : 0.02117 USD		 View Offer
Avnet 21000 3000+ : 0.02259 USD
6000+ : 0.0218 USD
12000+ : 0.02149 USD
24000+ : 0.02117 USD		 View Offer

Similar Parts

Part Number Manufacturer Description
ESD5Z2.5 Formosa MS SMD Transient Voltage Suppressor
ESD5Z2.5T1G onsemi ESD Protection Diode
ESD5Z2.5T1 onsemi Transient Voltage Suppressors
ESD5Z2.5-1 AiT Components TRANSIENT VOLTAGE SUPPRESSORS
ESD5Z2.5 Chip Integration Technology 200mW Surface Mount Bi-Directional TVS

ESD5Z2.5 datasheet comparison

🏠
