ESD5Z5.0 Datasheet (Galaxy Microelectronics)

Part ESD5Z5.0
Description Single Line TVS Diode
Category Diode
Manufacturer Galaxy Microelectronics
Size 301.50 KB
ESD5Z5.0 Datasheet (PDF) Download
Pricing from 0.02217 USD, available from Avnet and Newark.Powered by Octopart
🏠
Galaxy Microelectronics

ESD5Z5.0 Overview

Key Specifications

Package: SOD-523-2
Pins: 2
Operating Voltage: 5 V
Height: 700 µm

Key Features

  • ESD / transient protection of high speed data lines
  • Low reverse stand-off voltage: 2.5V-12V
  • Very low leakage current
  • RoHS compliant with Halogen-free Single Line TVS Diode ESD5ZXX Mechanical Data
  • Case: SOD-523

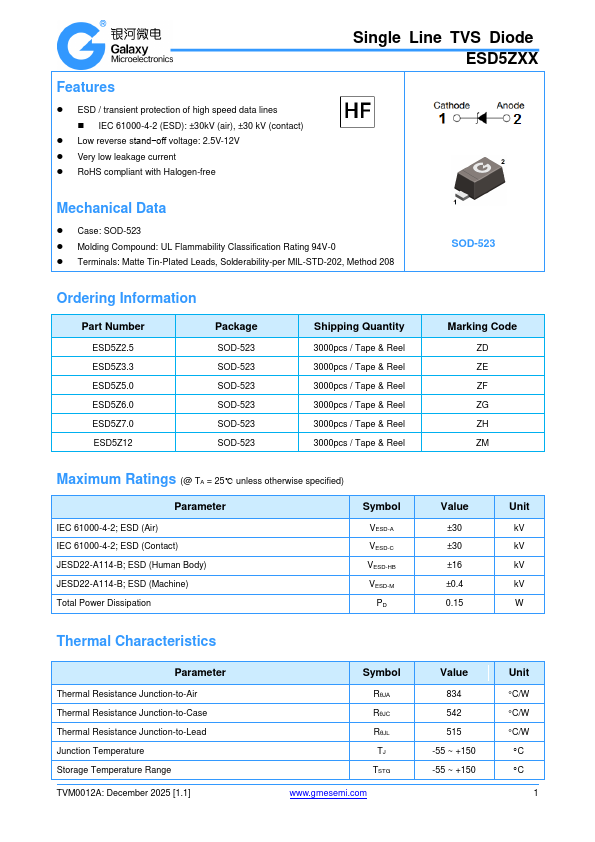

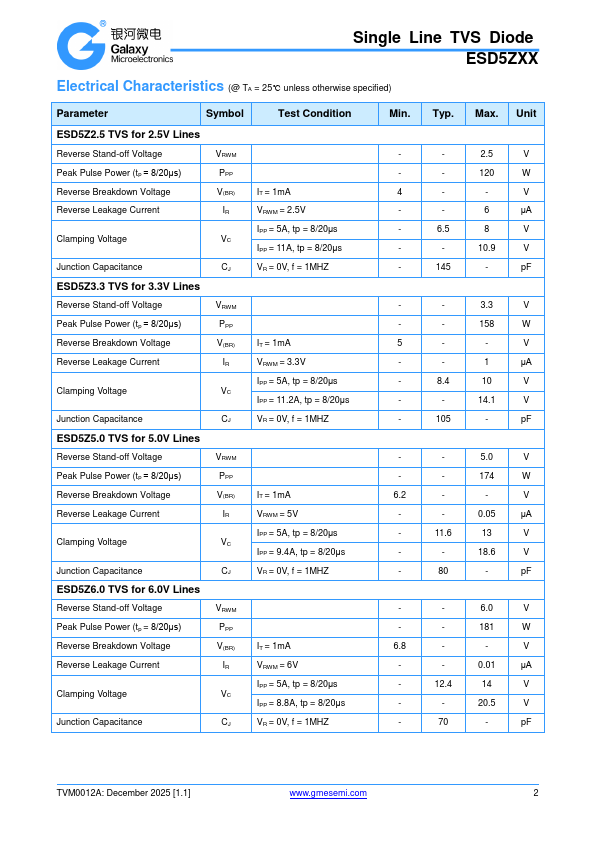

ESD5Z5.0 datasheet preview

Price & Availability

Seller Inventory Price Breaks Buy
Avnet 513000 3000+ : 0.02217 USD
6000+ : 0.02139 USD
12000+ : 0.02108 USD
24000+ : 0.02077 USD		 View Offer
Avnet 17720 1+ : 0.058 USD View Offer
