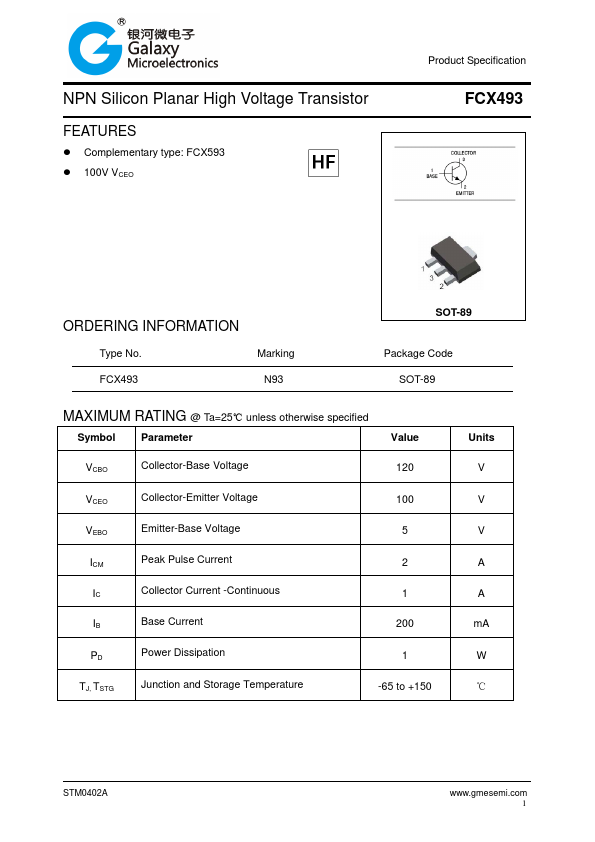

Galaxy Century Microelectronics FCX493
NPN Silicon Planar High Voltage Transistor
| Part No. | FCX493 |
|---|---|
| Datasheet | FCX493 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Planar High Voltage Transistor |
| Buy | Stock & Price |
FEATURES
● Complementary type: FCX593● 100V VCEO Product Specification FCX493 ORDERING INFORMATION Type No. Marking FCX493 N93 SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO Collector-Base Voltage 120 VCEO Collector-Emitter Voltage 100 VEBO Emitter-Base Voltage 5 ICM Peak Pulse Current 2 IC Collector Current -Continuous 1 IB Base Current 200 PD Power Dissipation 1 TJ, TSTG Junction and Storage Temperature -65 to +150 Units V V V A A mA W ℃ STM0402A 1 Product Specification NPN Silicon Planar High Voltage Transistor FCX493

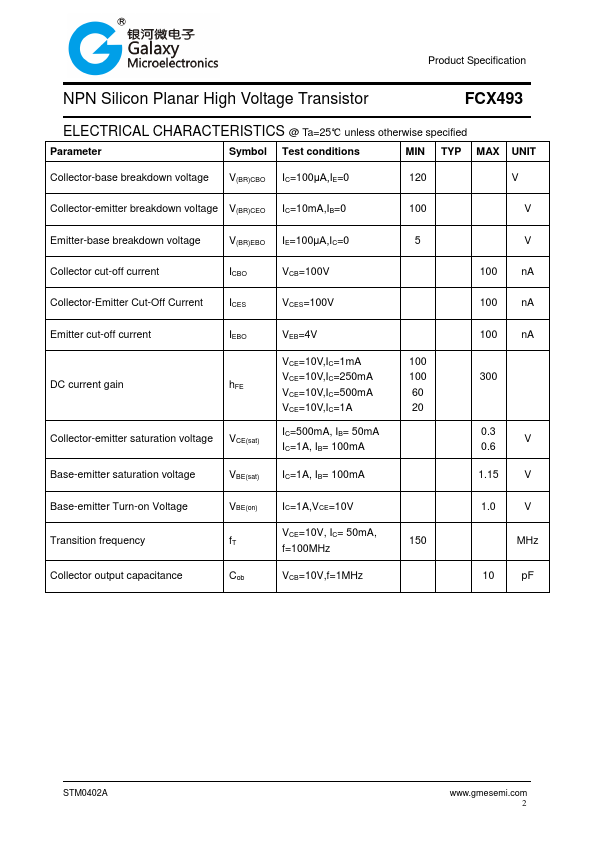

ELECTRICAL CHARACTERISTICS
@ Ta=25℃ unless otherwise specified Parameter Symbol Test conditions MIN TYP MAX UNIT Collector-base breakdown voltage V(BR)CBO IC=100μA,IE=0 120 V Collector-emitter breakdown voltage V(BR)CEO IC=10mA,IB=0 100 V Emitter-base breakdown voltage V(BR)EBO IE=100μA,IC=0 5 V Collector cut-off current ICBO VCB=100V 100 nA Collector-Emitter Cut-Off Current ICES VCES=100V 100 nA Emitter cut-o...
