FCX493

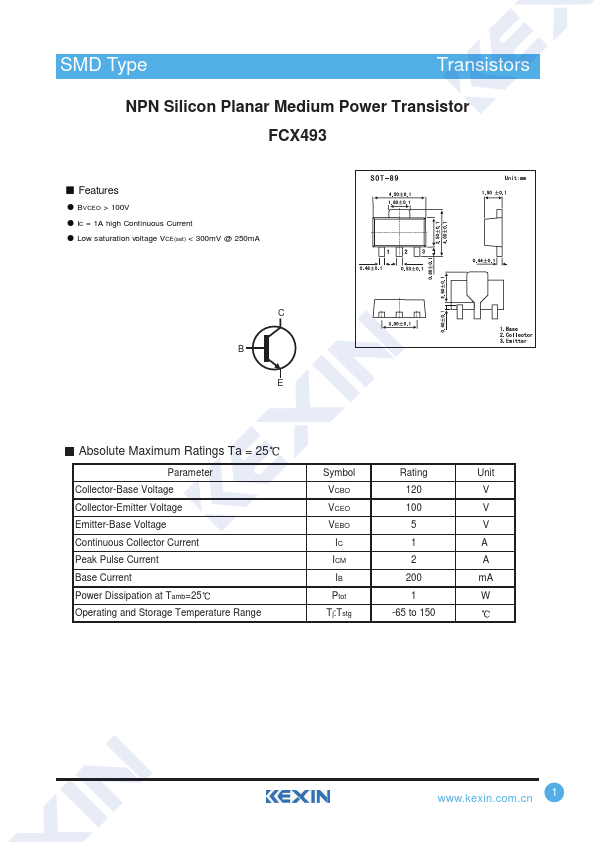

Features
- BVCEO > 100V
- IC = 1A high Continuous Current
- Low saturation voltage VCE(sat) < 300m V @ 250m A
Absolute Maximum Ratings Ta = 25
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Peak Pulse Current Base Current Power Dissipation at Tamb=25 Operating and Storage Temperature Range
Symbol
Rating
Unit
VCBO
VCEO
VEBO
200 m A
Ptot
Tj:Tstg
-65 to 150
.kexin..cn 1
SMD Type
Transistors
NPN Silicon Planar Medium Power Transistor FCX493

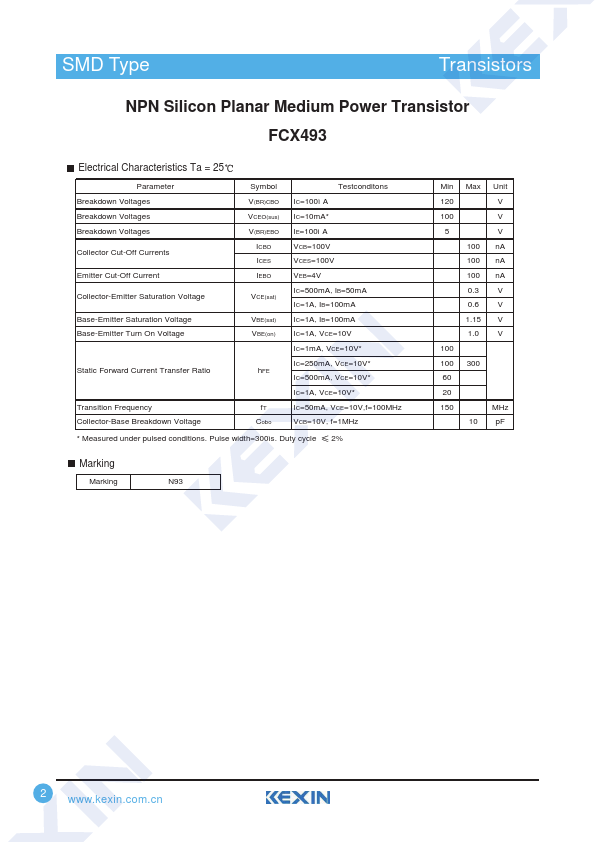

Electrical Characteristics Ta = 25
Parameter Breakdown Voltages Breakdown Voltages Breakdown Voltages Collector Cut-Off Currents Emitter Cut-Off Current Collector-Emitter Saturation Voltage Base-Emitter Saturation Voltage Base-Emitter Turn On Voltage
Static Forward Current Transfer Ratio
Transition Frequency Collector-Base Breakdown Voltage
Symbol V(BR)CBO VCEO(sus) V(BR)EBO
ICBO ICES IEBO VCE(sat) VBE(sat) VBE(on) h...
