Galaxy Century Microelectronics FMMT489
NPN Silicon Epitaxial Planar Transistor
| Part No. | FMMT489 |
|---|---|
| Datasheet | FMMT489 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |

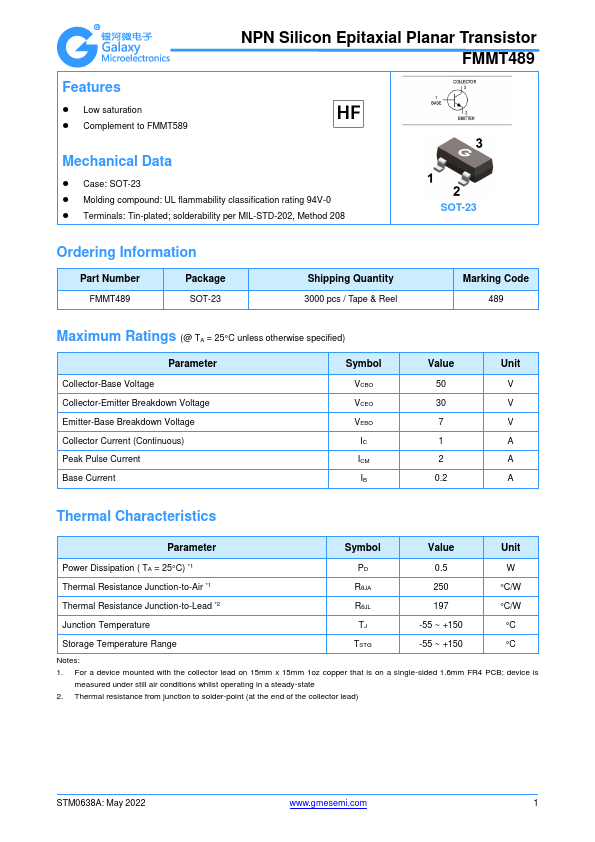

FEATURES
● Low saturation● Complement to FMMT589 NPN Silicon Epitaxial Planar Transistor FMMT489
MECHANICAL DATA
● Case: SOT-23● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-23 Ordering Information Part Number FMMT489 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code 489
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Peak Pulse Current Base Current Symbol VCBO VCEO VEBO IC ICM IB Value 50 30 7 1 2 0.2 Unit V V V A A A Thermal Characteristics Parameter Symbol Value Unit Power Dissipation ( TA = 25°C) *1 Thermal Resistance Junction-to-Air *1 Thermal Resistance Junction-to-Lead *2 PD RθJA RθJL 0.5 W 250 °C/W 197 °C/W Junction Temperature TJ -55 ~ +150 °C Storage Temperature Range TSTG -55 ~ +150 °C Notes: 1. For a device mounted with the colle...
