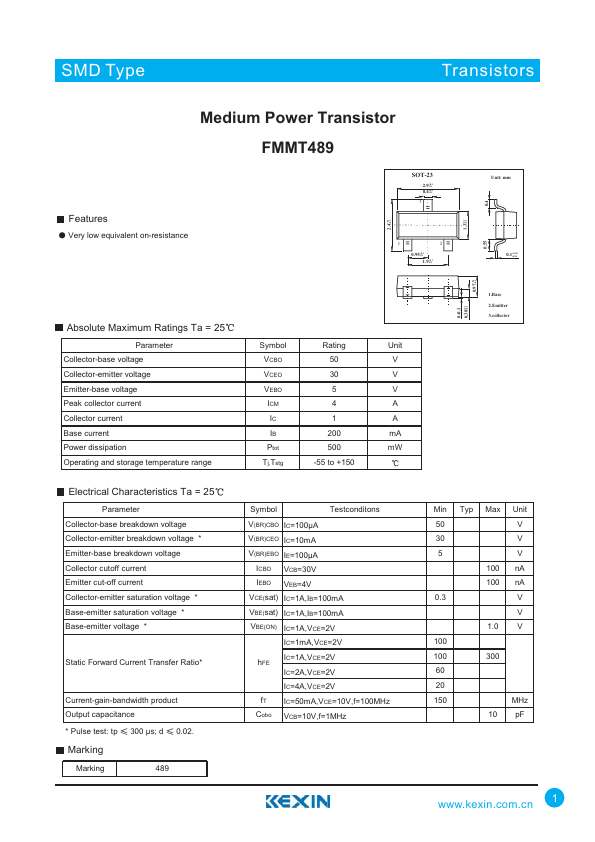

FMMT489 Datasheet PDF

FEATURES

Very low equivalent on-resistance +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Base current Power dissipation Operating and storage temperature range Symbol Rating Unit VCBO 50 V VCEO 30 V VEBO 5 V ICM 4 A IC 1 A IB 200 mA Ptot 500 mW Tj,Tstg -55 to +150

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage * Emitter-base breakdown voltage Collector cutoff current Emitter cut-off current Collector-emitter saturation voltage * Base-emitter saturation voltage * Base-emitter voltage * Static Forward Current Transfer Ratio* Current-gain-bandwidth product Output capacitance * Pulse test: tp 300 ìs; d 0.02. Marking Marking 489 Symbol Testconditons V(BR)CBO IC=100ìA V(BR)CEO IC=...
