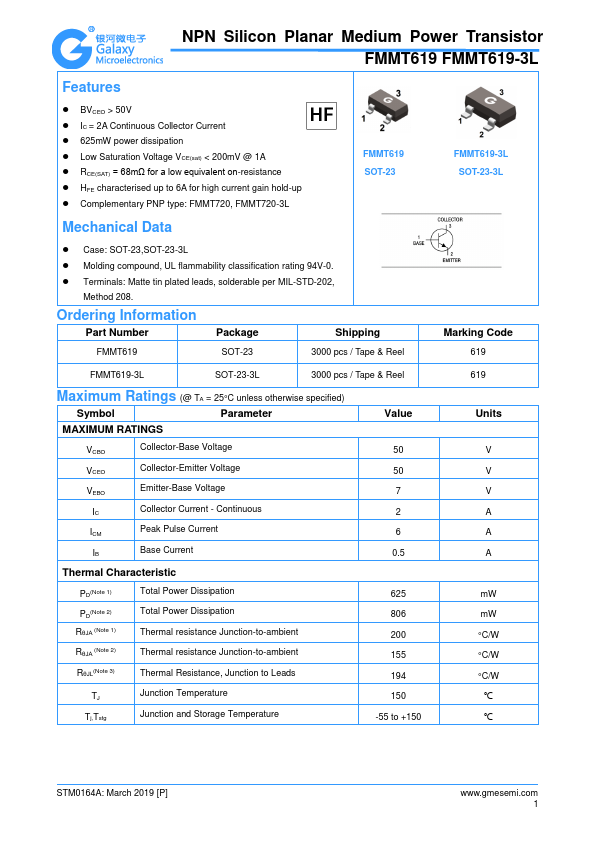

Galaxy Century Microelectronics FMMT619
NPN Silicon Planar Medium Power Transistor
| Part No. | FMMT619 |
|---|---|
| Datasheet | FMMT619 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | NPN Silicon Planar Medium Power Transistor |
| Buy | Stock & Price |
FEATURES
● BVCEO > 50V● IC = 2A Continuous Collector Current
● 625mW power dissipation
● Low Saturation Voltage VCE(sat) < 200mV @ 1A
● RCE(SAT) = 68mΩ for a low equivalent on-resistance
● HFE characterised up to 6A for high current gain hold-up
● Complementary PNP type: FMMT720, FMMT720-3L FMMT619 SOT-23
MECHANICAL DATA
● Case: SOT-23,SOT-23-3L● Molding compound, UL flammability classification rating 94V-0.
● Terminals: Matte tin plated leads, solderable per MIL-STD-202, Method 208. Ordering Information Part Number Package Shipping FMMT619 SOT-23 3000 pcs / Tape & Reel FMMT619-3L SOT-23-3L Marking Code 619 FMMT619-3L SOT-23-3L 3000 pcs / Tape & Reel
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Symbol ParameterMAXIMUM RATINGS
VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current - Continuous ICM Peak Pulse Current IB Base Current Value 50 50 7 2 6 0.5 Thermal Characteristic PD(Note 1) Total Power Dissipation PD(Note 2)...
