MLSM FMMT619
PNP Transistor
| Part No. | FMMT619 |
|---|---|
| Datasheet | FMMT619 Download |
| Manufacturer |  MLSM |
| Description | PNP Transistor |
| Buy | Stock & Price |
FEATURES
● Low Saturation Voltage FMMT619 Transistor (NPN) C 619 B E Marking and pin assignment SOT-23 top view Schematic diagramMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Symbol Parameter VCBO VCEO VEBO Ic Pc RθJA PCM RθJA TJ , TSTG Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous Power Dissipation Thermal Resistance from Junction to Ambient Maximum Power Dissipation (note 1) Thermal Resistance from Junction to Ambient (note 1) Operating and Storage Temperature Range Value 50 50 5 2 0.35 357 0.625 200 -55～+150 Unit V V V A W ℃/W W ℃/W ℃ Ordering Information (Example) Type FMMT619 Package Marking Minimum Package(pcs) SOT-23 619 3,000 Inner Box Quantity(pcs) 45,000 Outer Carton Quantity(pcs) Delivery Mode 180,000 7"reel Copyright©MLS Microelectronics Co., Ltd Rev 1.0 Page 1 Total 5 FMMT619 Transistor (NPN)ELECTRICAL CHARACTERISTICS

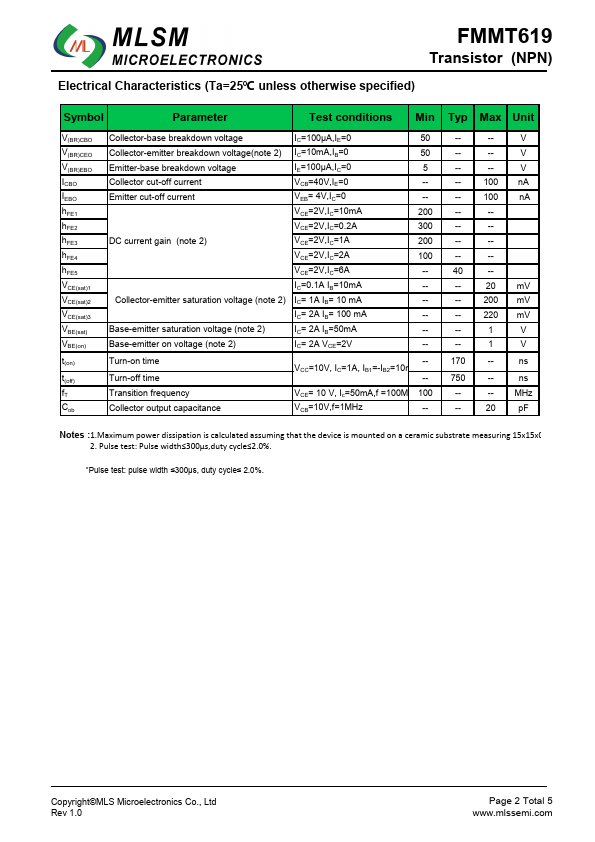

(Ta=25℃ unless otherwise specified) Symbol Parameter Test conditions Min Typ Max Unit V(BR)CBO V(BR)...
