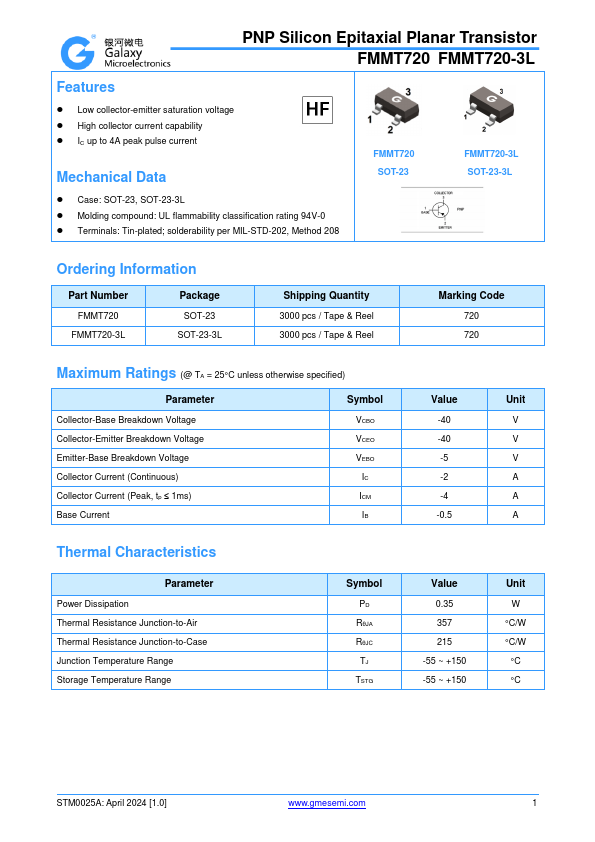

FMMT720-3L
Features
- Low collector-emitter saturation voltage
- High collector current capability
- IC up to 4A peak pulse current
Mechanical Data
- Case: SOT-23, SOT-23-3L
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
FMMT720 SOT-23
FMMT720-3L SOT-23-3L
Ordering Information
Part Number FMMT720
Package SOT-23 SOT-23-3L
Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code 720 720
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Peak, tp ≤ 1ms) Base Current
Symbol VCBO VCEO VEBO IC ICM IB
Value -40 -40 -5 -2 -4 -0.5
Unit V V V A A A
Thermal Characteristics
Parameter Power Dissipation Thermal Resistance Junction-to-Air Thermal Resistance Junction-to-Case Junction Temperature Range Storage Temperature...
