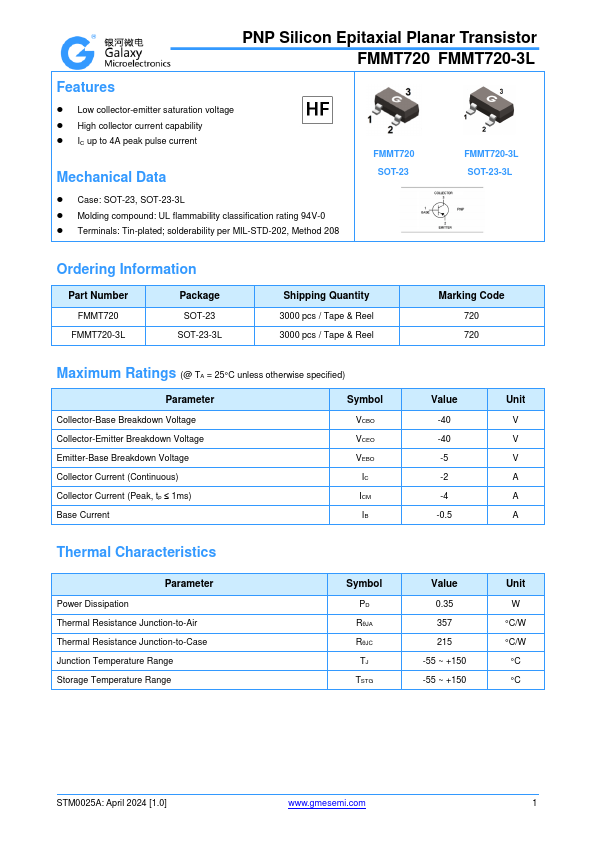

Galaxy Century Microelectronics FMMT720
PNP Silicon Epitaxial Planar Transistor
| Part No. | FMMT720 |
|---|---|
| Datasheet | FMMT720 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | PNP Silicon Epitaxial Planar Transistor |
| Buy | Stock & Price |
FEATURES
● Low collector-emitter saturation voltage● High collector current capability
● IC up to 4A peak pulse current
MECHANICAL DATA
● Case: SOT-23, SOT-23-3L● Molding compound: UL flammability classification rating 94V-0
● Terminals: Tin-plated; solderability per MIL-STD-202, Method 208 FMMT720 SOT-23 FMMT720-3L SOT-23-3L Ordering Information Part Number FMMT720 FMMT720-3L Package SOT-23 SOT-23-3L Shipping Quantity 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code 720 720
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Collector-Base Breakdown Voltage Collector-Emitter Breakdown Voltage Emitter-Base Breakdown Voltage Collector Current (Continuous) Collector Current (Peak, tp ≤ 1ms) Base Current Symbol VCBO VCEO VEBO IC ICM IB Value -40 -40 -5 -2 -4 -0.5 Unit V V V A A A Thermal Characteristics Parameter Power Dissipation Thermal Resistance Junction-to-Air Thermal Resistance Junction-to-Case Junction Temperature Range Storage Temperature Range Symbol PD...
