Datasheet Details
| Part number | FMMT720 |
|---|---|
| Manufacturer | Rectron |
| File Size | 100.61 KB |
| Description | PNP SILICON POWER(SWITCHING) TRANSISTORS |
| Download | FMMT720 Download (PDF) |
|
|
| Part number | FMMT720 |
|---|---|
| Manufacturer | Rectron |
| File Size | 100.61 KB |
| Description | PNP SILICON POWER(SWITCHING) TRANSISTORS |
| Download | FMMT720 Download (PDF) |
|
|
|
only.
"Typical" parameters which may be includ

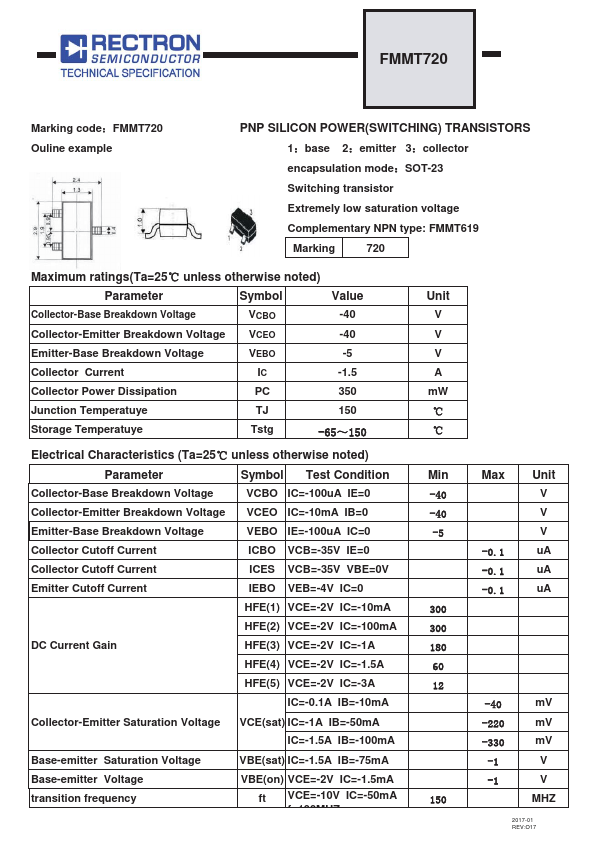

FMMT720 Marking code˖FMMT720 Ouline example PNP SILICON POWER(SWITCHING) TRANSISTORS 1˖base 2˖emitter 3˖collector encapsulation mode˖SOT-23 Switching transistor Extremely low saturation voltage Complementary NPN type: FMMT619 Marking 720 Maximum ratings(Ta=25ć unless otherwise noted) Parameter Symbol Value Collector-Base Breakdown Voltage VCBO -40 Collector-Emitter Breakdown Voltage VCEO -40 Emitter-Base Breakdown Voltage VEBO -5 Collector Current IC -1.5 Collector Power Dissipation PC 350 Junction Temperatuye TJ 150 Storage Temperatuye Tstg ̚̚ Electrical Characteristics (Ta=25ć unless otherwise noted) Parameter Symbol Test Condition Collector-Base Breakdown Voltage VCBO IC=-100uA IE=0 Collector-Emitter Breakdown Voltage VCEO IC=-10mA IB=0 Emitter-Base Breakdown Voltage VEBO IE=-100uA IC=0 Collector Cutoff Current ICBO VCB=-35V IE=0 Collector Cutoff Current ICES VCB=-35V VBE=0V Emitter Cutoff Current IEBO VEB=-4V IC=0 HFE(1) VCE=-2V IC=-10mA HFE(2) VCE=-2V IC=-100mA DC Current Gain HFE(3) VCE=-2V IC=-1A HFE(4) VCE=-2V IC=-1.5A HFE(5) VCE=-2V IC=-3A IC=-0.1A IB=-10mA Collector-Emitter Saturation Voltage VCE(sat) IC=-1A IB=-50mA IC=-1.5A IB=-100mA Base-emitter Saturation Voltage VBE(sat) IC=-1.5A IB=-75mA Base-emitter Voltage VBE(on) VCE=-2V IC=-1.5mA transition frequency ft VCE=-10V IC=-50mA f 100MHZ Unit V V V A mW ć ć Min Max Unit V V V uA uA uA mV mV mV V V MHZ 2017-01 REV:O17 DISCLAIMER NOTICE Rectron Inc reserves the right to make changes without notice to any product specification herein, to make corrections, modifications, enhancements or other changes.

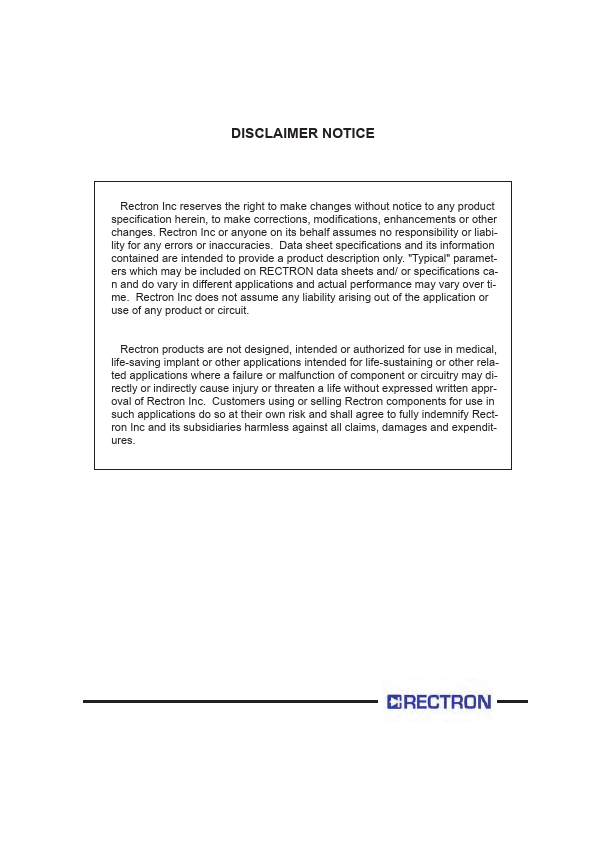

Rectron Inc or anyone on its behalf assumes no responsibility or liability for any errors or inaccuracies.
