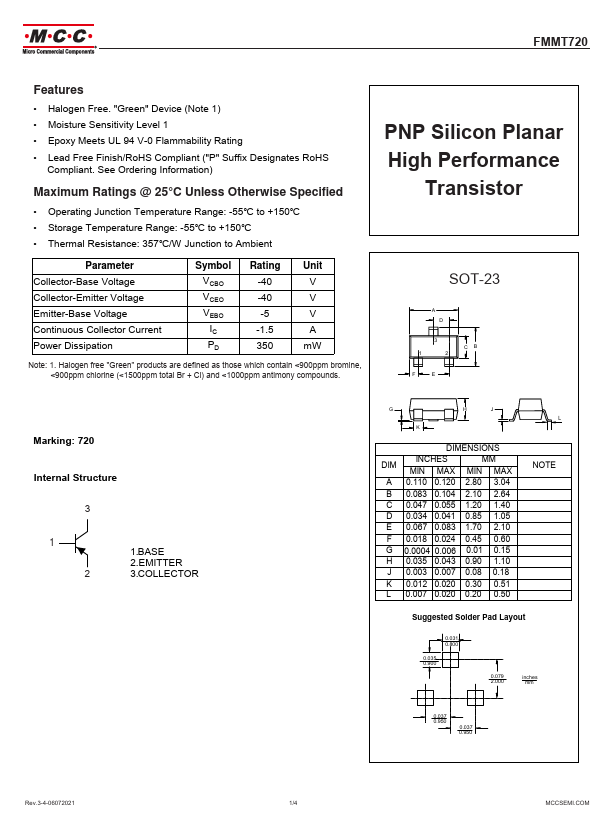

FMMT720
Features
- Halogen Free. "Green" Device (Note 1)
- Moisture Sensitivity Level 1
- Epoxy Meets UL 94 V-0 Flammability Rating
- Lead Free Finish/Ro HS pliant ("P" Suffix Designates Ro HS pliant. See Ordering Information)
Maximum Ratings @ 25°C Unless Otherwise Specified
- Operating Junction Temperature Range: -55℃ to +150℃
- Storage Temperature Range: -55℃ to +150℃
- Thermal Resistance: 357℃/W Junction to Ambient
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation
Symbol VCBO VCEO VEBO IC PD
Rating -40 -40 -5 -1.5 350
Unit V V V A m W
Note: 1. Halogen free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds.
PNP Silicon Planar High Performance
Transistor
SOT-23
Marking: 720
Internal Structure 3
1 2
1.BASE 2.EMITTER 3.COLLECTOR
DIMENSIONS
INCHES
MIN MAX MIN MAX
A...
