FMMT720
Features
- Switching transistor
- Extremely low saturation voltage
- plementary NPN type: FMMT619
Application
- Gate Driving MOSFETs and IGBTs
- DC-DC converters
- Charging circuit
- Power switches

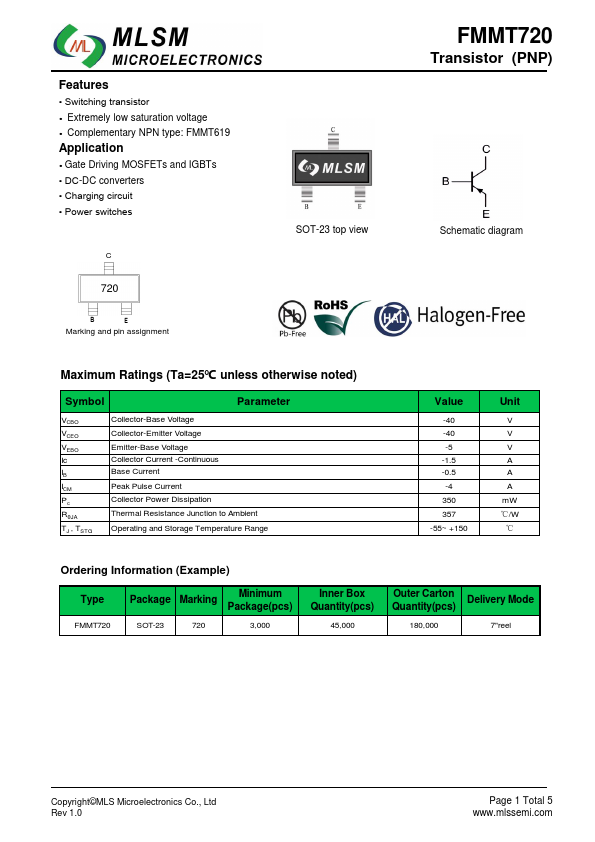

Marking and pin assignment
Transistor (PNP)
SOT-23 top view
Schematic diagram
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO VCEO VEBO Ic IB ICM Pc RθJA TJ , TSTG
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Base Current Peak Pulse Current Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Value
-40 -40 -5 -1.5 -0.5 -4 350 357 -55~ +150
Unit
V V V A A A m W ℃/W ℃

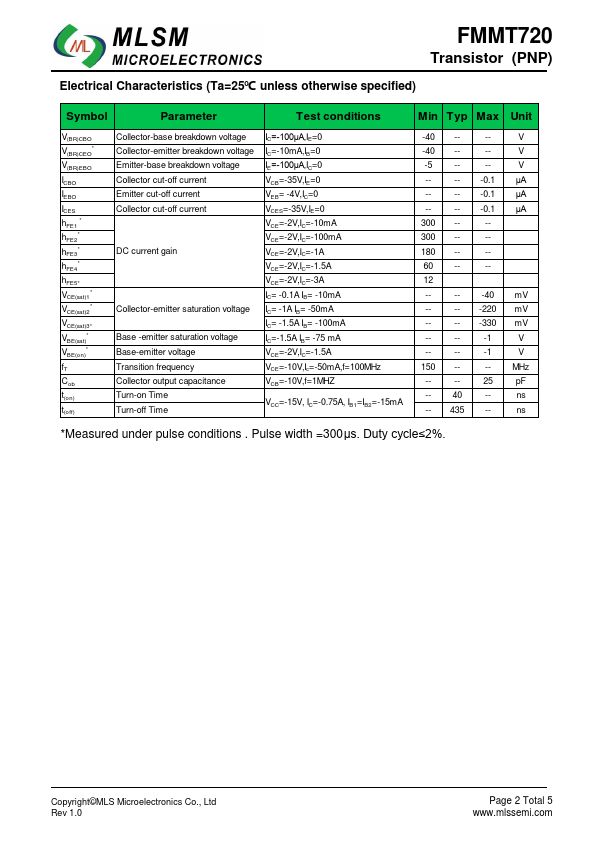

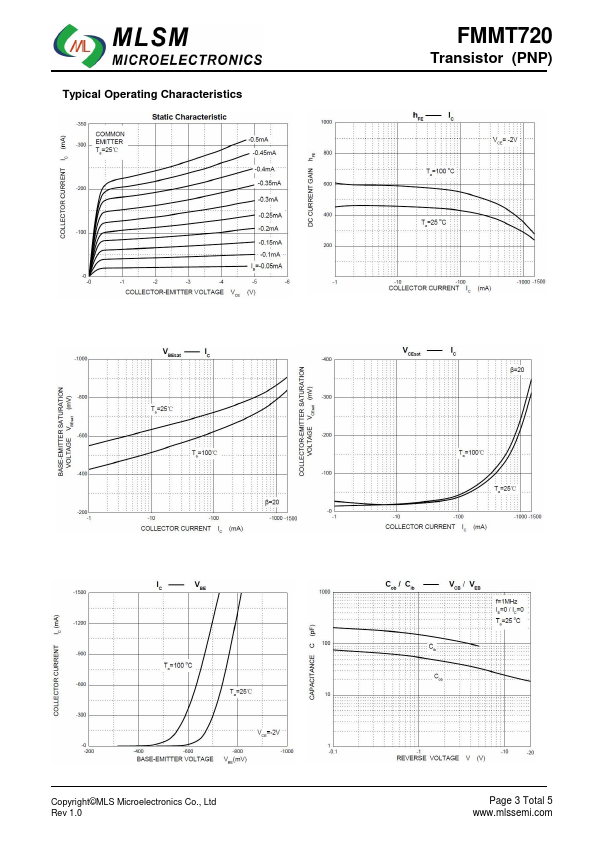

Ordering Information (Example)
Type
Package Marking Minimum Package(pcs)
SOT-23
3,000
Inner Box Quantity(pcs)
45,000
Outer Carton Delivery Mode Quantity(pcs)
180,000
7"reel
