GBJ25005 - Silicon Bridge Rectifiers

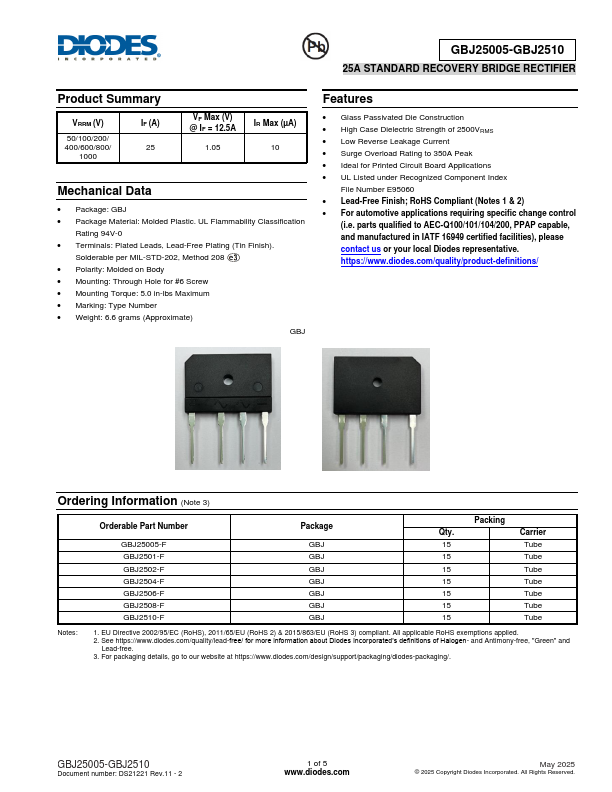

Key Features

  • z Rating to 1000V PRV z Surge overload rating to 350 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
GBJ25005 25 Amp Glass Passivated Bridge Rectifier Micro Commercial Components
GBJ25005 25A Miniature Glass Passivated Single-Phase Bridge Rectifiers CITC
GBJ25005 GLASS PASSIVATED SINGLE-PHASE BRIDGE RECTIFIER STS
GBJ25005 GLASS PASSIVATED BRIDGE RECTIFIER KD
GBJ25005 GLASS PASSIVATED BRIDGE SINGLE PHASE BRIDGE RECTIFIERS MOSPEC

Other Datasheets by Galaxy Microelectronics

Part Number Description
GBJ2501 Silicon Bridge Rectifiers
GBJ2502 Silicon Bridge Rectifiers
GBJ2504 Silicon Bridge Rectifiers
GBJ2506 Silicon Bridge Rectifiers
GBJ2508 Silicon Bridge Rectifiers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

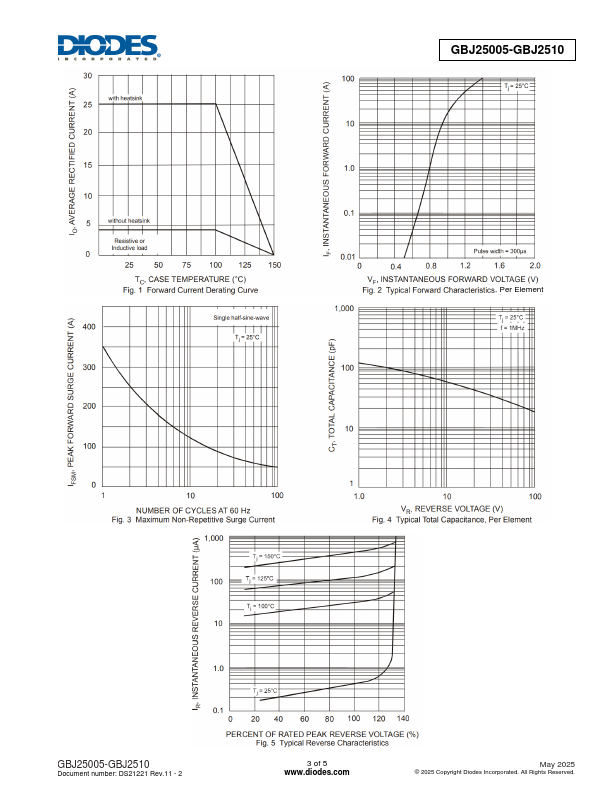

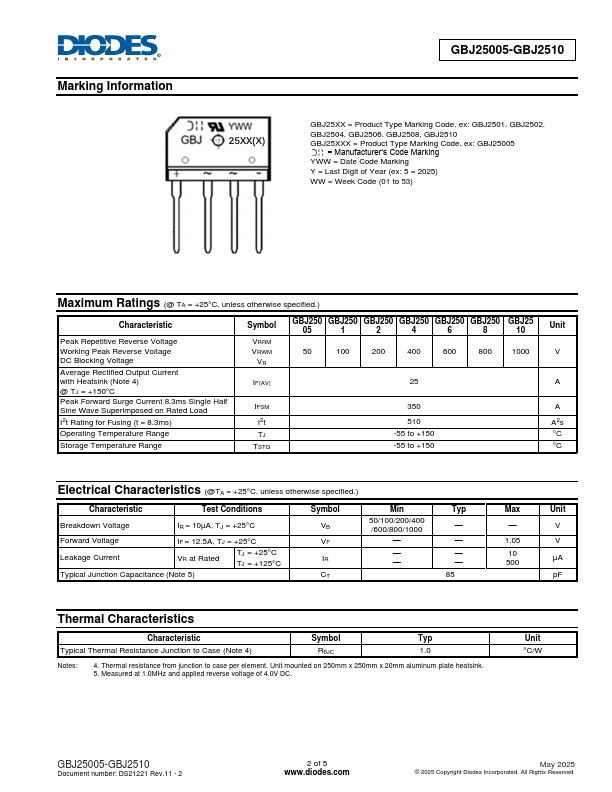

Production specification Silicon Bridge Rectifiers GBJ25005--GBJ2510 FEATURES z Rating to 1000V PRV z Surge overload rating to 350 Amperes peak z Ideal for printed circuit board Pb Lead-free z Reliable low cost construction utilizing molded plastic technique results in inexpensive product z Lead solderable per MIL-STD-202 method 208 MECHANCAL DATA z Polarity: Symbols molded on body z Weight: 0.23 ounces,6.6 grams z Mounting position: Any Maximum Ratings (@TA = 25°C unless otherwise specified) Characteristic Symbol GBJ25005 GBJ2501 GBJ2502 GBJ2504 GBJ2506 GBJ2508 GBJ2510 Maximum recurrent peak reverse voltage Maximum RMS voltage Maximum DC blocking voltage Maximum average forward Output current @TC=98℃ Peak forward surge current 8.
