KTA1505 - PNP Silicon Epitaxial Planar Transistor

Key Features

  • z Complementary To KTC3876. z Excellent HFE Linearity. z Low noise. Pb Lead-free Production specification KTA1505.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
KTA1505 Silicon PNP transistor BLUE ROCKET ELECTRONICS
KTA1505 PNP Transistor HOTTECH
KTA1505 PNP Transistor JCET
KTA1505 PNP Plastic Encapsulated Transistor SeCoS
KTA1505 PNP General Purpose Transistors WEITRON

Other Datasheets by Galaxy Microelectronics

Part Number Description
KTA1273 PNP Silicon Epitaxial Planar Transistor
KTA1275 PNP Silicon Epitaxial Planar Transistor
KTA1298 Silicon Epitaxial Planar Transistor
KTA1663 PNP Silicon Epitaxial Planar Transistor
KTA1664 PNP Silicon Epitaxial Planar Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

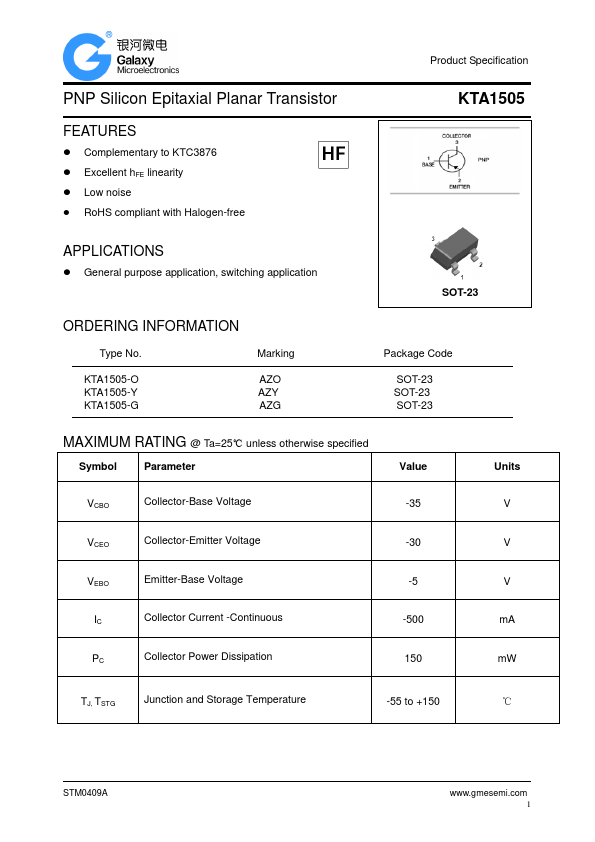

PNP Silicon Epitaxial Planar Transistor FEATURES z Complementary To KTC3876. z Excellent HFE Linearity. z Low noise. Pb Lead-free Production specification KTA1505 APPLICATIONS z General purpose application, switching application. ORDERING INFORMATION Type No. Marking KTA1505 AZO/AZY/AZG SOT-23 Package Code SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value Units VCBO Collector-Base Voltage -35 V VCEO Collector-Emitter Voltage -30 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -500 mA PC Collector Power Dissipation 150 mW Tj,Tstg Junction and Storage Temperature -55 to +150 ℃ C055 Rev.A www.gmicroelec.
