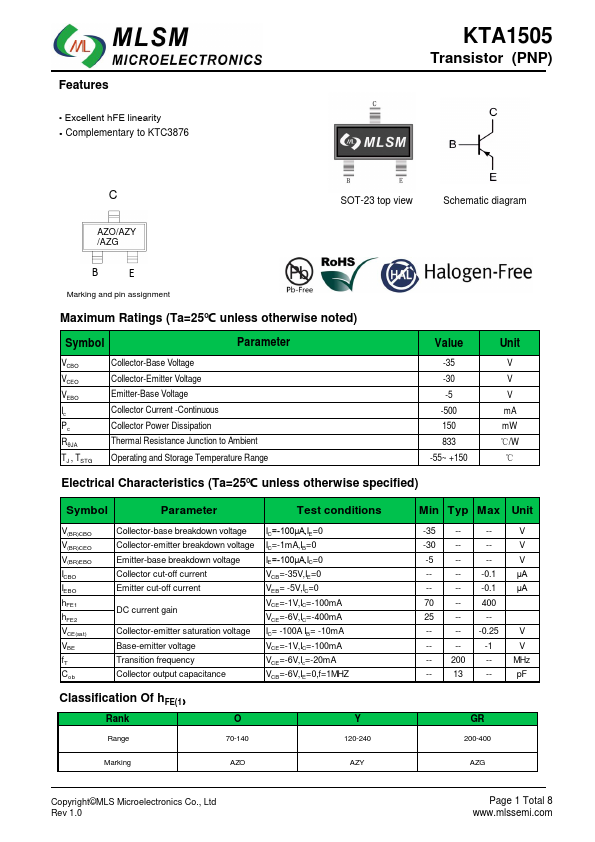

Datasheet Summary
Features
- Excellent hFE linearity
- plementary to KTC3876
Transistor (PNP)
SOT-23 top view
Schematic diagram
AZO/AZY /AZG
Marking and pin assignment
Maximum Ratings (Ta=25℃ unless otherwise noted)
Symbol
Parameter
Value
VCBO VCEO VEBO Ic Pc RθJA TJ , TSTG
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current -Continuous Collector Power Dissipation Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
-35 -30 -5 -500 150 833 -55~ +150
Electrical Characteristics (Ta=25℃ unless otherwise specified)
Unit
V V V mA mW ℃/W ℃
Symbol
Parameter
Test conditions
V(BR)CBO V(BR)CEO V(BR)EBO ICBO IEBO hFE1...
