KTC4075 Datasheet | Galaxy Microelectronics

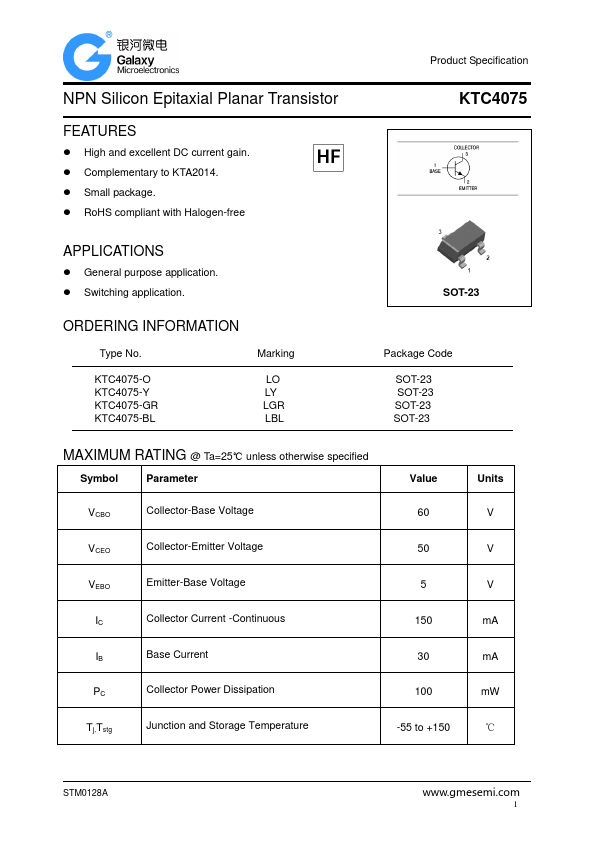

FEATURES - High and excellent DC current gain. - plementary to KTA2014. - Small package. - Ro HS pliant with Halogen-free APPLICATIONS - General purpose application. - Switching application. ORDERING INFORMATION Type No. Marking KTC4075-O KTC4075-Y KTC4075-GR KTC4075-BL LO LY LGR LBL SOT-23 Package Code SOT-23 SOT-23 SOT-23 SOT-23 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage Collector Current -Continuous Base Current Collector Power Dissipation Tj,Tstg Junction and Storage Temperature Value 60 50 5 150 30 100 -55 to +150 Units V V V m A m A m W ℃ STM0128A .gmesemi. Product Specification NPN Silicon Epitaxial Planar...
