KTC4075W
KTC4075W is NPN Small Signal Surface Mount Transistor manufactured by Galaxy Microelectronics.

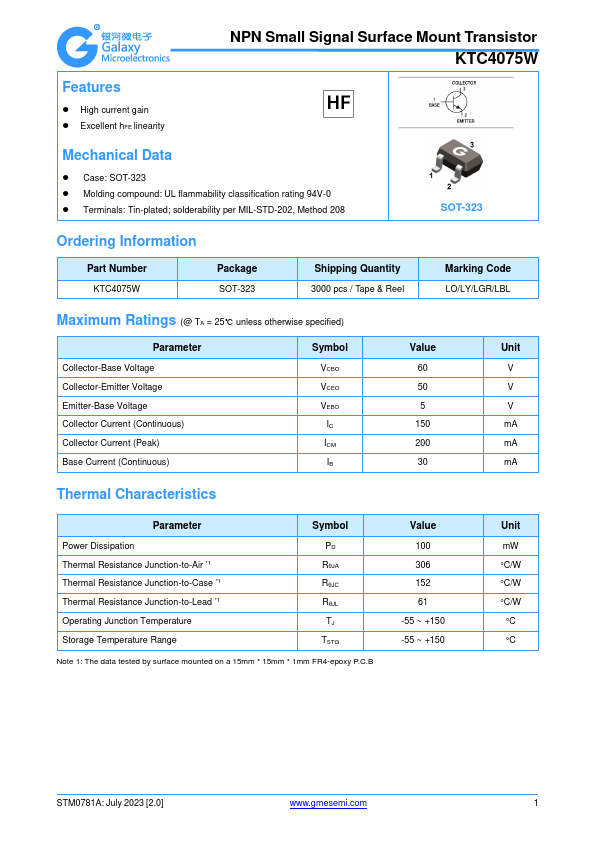

Features
- High current gain
- Excellent h FE linearity
Mechanical Data
- Case: SOT-323
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-323
Ordering Information
Part Number KTC4075W
Package SOT-323
Shipping Quantity 3000 pcs / Tape & Reel
Marking Code LO/LY/LGR/LBL
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Collector Current (Peak) Base Current (Continuous)
Symbol VCBO VCEO VEBO IC ICM IB
Value 60 50 5 150 200 30
Unit V V V m A m A m A
Thermal Characteristics
Parameter
Symbol
Power Dissipation Thermal Resistance Junction-to-Air
- 1 Thermal Resistance Junction-to-Case
- 1 Thermal Resistance Junction-to-Lead
- 1 Operating Junction Temperature Storage Temperature Range
PD RθJA RθJC RθJL TJ TSTG
Note 1: The data tested by surface mounted on a 15mm
- 15mm
- 1mm FR4-epoxy P.C.B
Value 100 306 152 61
-55 ~ +150 -55 ~ +150
Unit m W °C/W °C/W °C/W °C °C
STM0781A: July 2023 [2.0]
.gmesemi.
NPN Small Signal Surface Mount Transistor

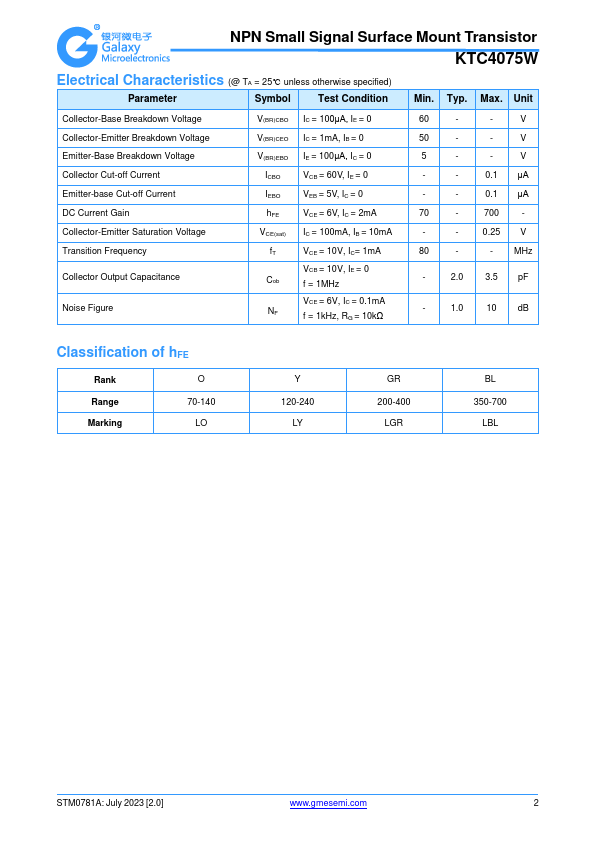

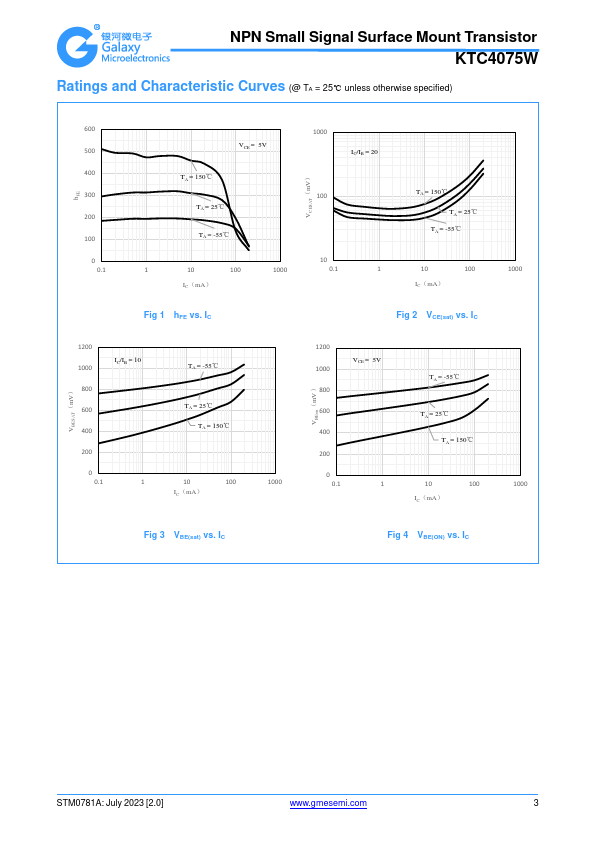

Electrical Characteristics (@ TA = 25℃ unless otherwise specified)
Parameter
Symbol
Test...
