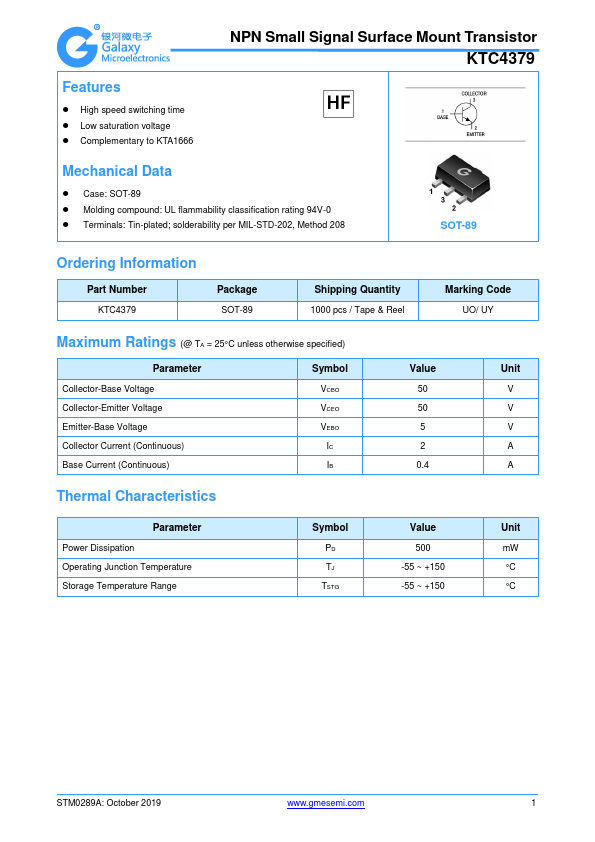

Datasheet Summary
Features
- High speed switching time
- Low saturation voltage
- plementary to KTA1666
NPN Small Signal Surface Mount Transistor KTC4379
Mechanical Data
- Case: SOT-89
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOT-89
Ordering Information
Part Number KTC4379
Package SOT-89
Shipping Quantity 1000 pcs / Tape & Reel
Marking Code UO/ UY
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current (Continuous) Base Current (Continuous)
Symbol VCBO VCEO VEBO IC IB
Value 50 50 5 2 0.4
Unit V V V A...
