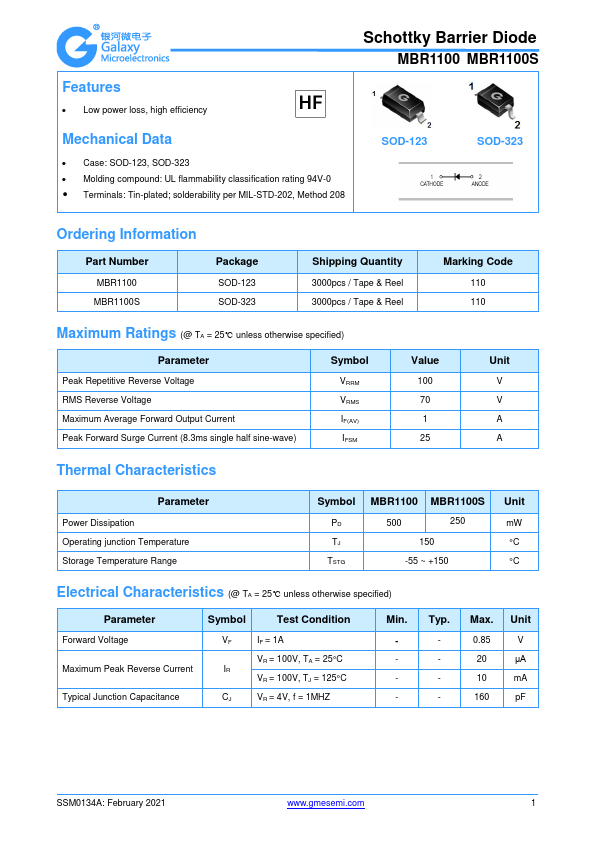

MBR1100S
MBR1100S is Schottky Barrier Diode manufactured by Galaxy Microelectronics.
- Part of the MBR1100 comparator family.
- Part of the MBR1100 comparator family.
Features
- Low power loss, high efficiency
Schottky Barrier Diode
MBR1100 MBR1100S
Mechanical Data
- Case: SOD-123, SOD-323
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208

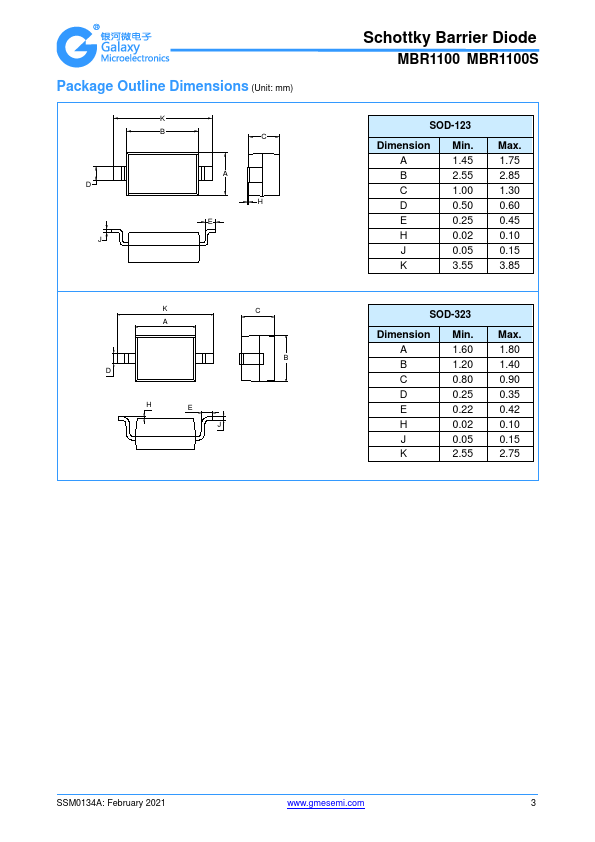

SOD-123
SOD-323
Ordering Information
Part Number
MBR1100 MBR1100S
Package
SOD-123 SOD-323
Shipping Quantity
3000pcs / Tape & Reel 3000pcs / Tape & Reel
Marking Code
110 110
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.3ms single half sine-wave)
Symbol
VRRM VRMS IF(AV) IFSM
Value
100 70 1 25
Unit
Thermal Characteristics
Parameter
Power Dissipation Operating junction Temperature Storage Temperature Range
Symbol
PD TJ TSTG
MBR1100 MBR1100S
-55 ~ +150
Unit m W °C °C
Electrical Characteristics (@ TA = 25℃ unless otherwise...
