MBR1100 - Axial Lead Rectifier

Product Overview

ON Semiconductor

📥 Download Datasheet

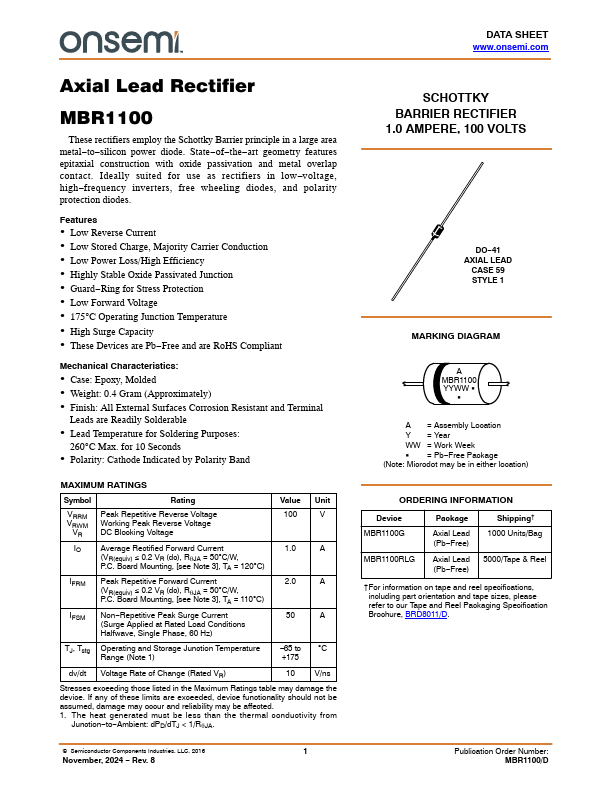

MBR1100 Axial Lead Rectifier by ON Semiconductor - Datasheet Preview — Datasheet preview – MBR1100

Datasheet Details

Part number	MBR1100
Manufacturer	ON Semiconductor
File Size	61.88 KB
Description	Axial Lead Rectifier
Datasheet	MBR1100 Datasheet

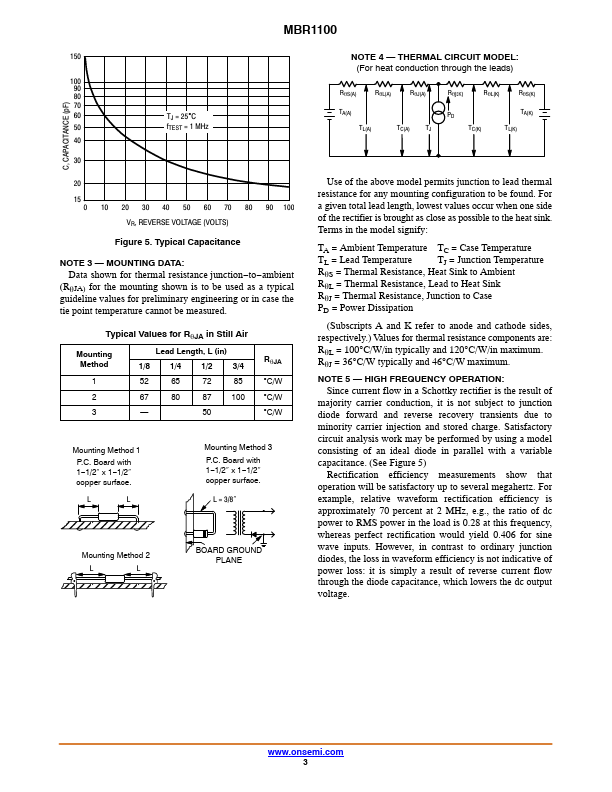

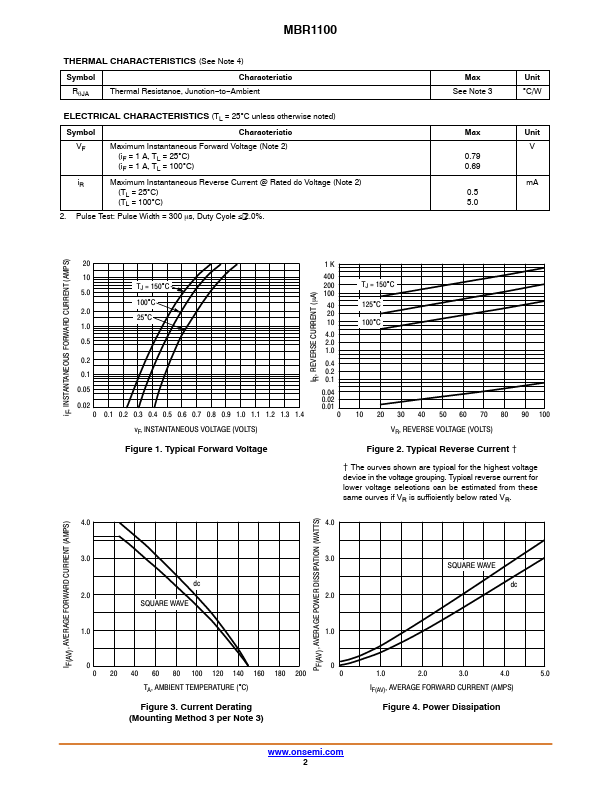

Additional preview pages of the MBR1100 datasheet.

Product details

Features

epitaxial construction with oxide passivation and metal overlap contact. Ideally suited for use as rectifiers in low.
voltage, high.
frequency inverters, free wheeling diodes, and polarity protection diodes. Features.
Low Reverse Current.
Low Stored Charge, Majority Carrier Conduction.
Low Power Loss/High Efficiency.
Highly Stable Oxide Passivated Junction.
Guard.
Ring for Stress Protection.
Low Forward Voltage.
