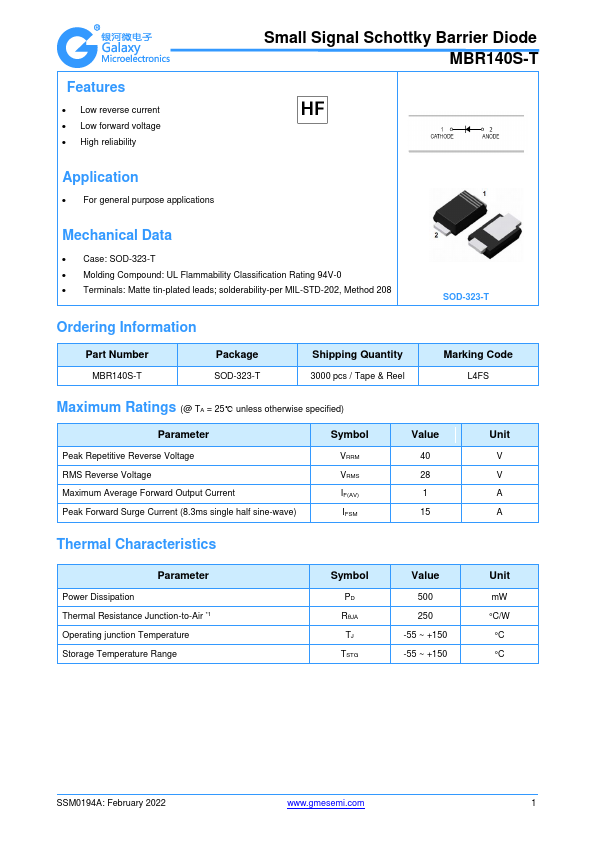

MBR140S-T
MBR140S-T is Small Signal Schottky Barrier Diode manufactured by Galaxy Microelectronics.
Features
- Low reverse current
- Low forward voltage
- High reliability
Small Signal Schottky Barrier Diode MBR140S-T
Application
- For general purpose applications
Mechanical Data
- Case: SOD-323-T
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208
SOD-323-T
Ordering Information
Part Number
Package
SOD-323-T
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
L4FS
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.3ms single half sine-wave)
Symbol
VRRM VRMS IF(AV) IFSM
Value
40 28 1 15
Unit
Thermal Characteristics
Parameter
Power Dissipation Thermal Resistance Junction-to-Air
- 1 Operating junction Temperature Storage Temperature Range
Symbol
PD RθJA TJ TSTG
Value
500 250 -55 ~ +150 -55 ~ +150
Unit m W °C/W
°C °C
SSM0194A: February...
