MBRB2020 Datasheet | Galaxy Microelectronics

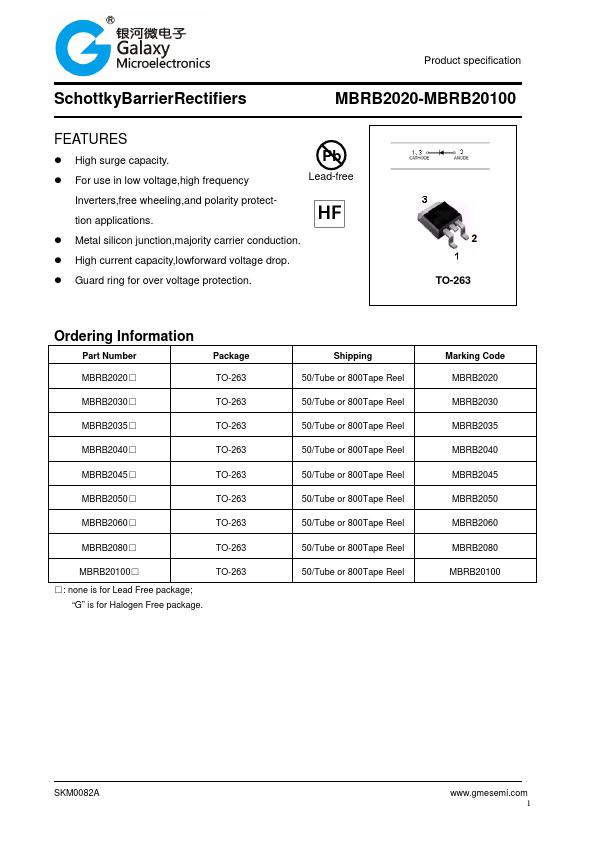

FEATURES - High surge capacity. - For use in low voltage,high frequency Pb Lead-free Inverters,free wheeling,and polarity protect- tion applications. - Metal silicon junction,majority carrier conduction. - High current capacity,lowforward voltage drop. - Guard ring for over voltage protection. TO-263 Ordering Information Part Number MBRB2020- Package TO-263 MBRB2030- TO-263 MBRB2035- TO-263 MBRB2040- TO-263 MBRB2045- TO-263 MBRB2050- TO-263 MBRB2060- TO-263 MBRB2080- TO-263 MBRB20100- TO-263 - : none is for Lead Free package; “G” is for Halogen Free package. Shipping 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel 50/Tube or 800Tape Reel Marking Code MBRB2020 MBRB2030 MBRB2035 MBRB2040 MBRB2045 MBRB2050 MBRB2060 MBRB2080 MBRB20100 SKM0082A .gmesemi. 1 Product specification Schottky Barrier Rectifiers MBRB2020-MBRB20100 MAXIMUM RATING operating temperature range applies unless otherwise specified Symbol Parameter MBR...
