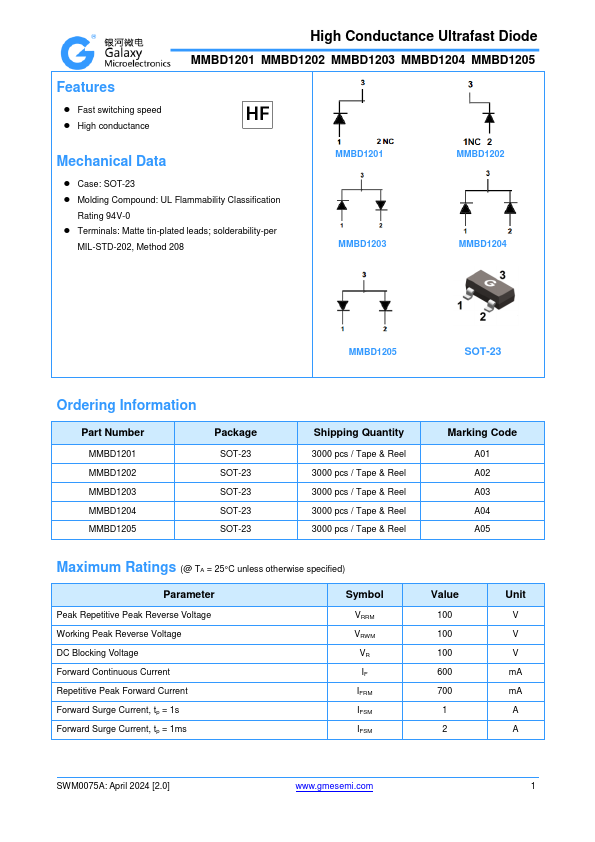

MMBD1204
Features
- Fast switching speed
- High conductance
High Conductance Ultrafast Diode
MMBD1201 MMBD1202 MMBD1203 MMBD1204 MMBD1205
Mechanical Data
- Case: SOT-23
- Molding pound: UL Flammability Classification
Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per
MIL-STD-202, Method 208
MMBD1201 MMBD1203
MMBD1202 MMBD1204
MMBD1205
SOT-23
Ordering Information
Part Number
MMBD1201 MMBD1202 MMBD1203 MMBD1204 MMBD1205
Package
SOT-23 SOT-23 SOT-23 SOT-23 SOT-23
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
A01 A02 A03 A04 A05
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Peak Repetitive Peak Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Forward Continuous Current Repetitive Peak Forward Current Forward Surge Current, tp = 1s Forward Surge Current, tp = 1ms
Symbol
VRRM VRWM
VR IF IFRM IFSM IFSM
Value
100 100 100 600 700
1...
