PS1117-5.0 Datasheet 800mA Low-Dropout Linear Regulator

Manufacturer: Galaxy Microelectronics

Overview: Product Specification 800 mA Low-Dropout Linear Regulator PS1117-XX.

Download the PS1117-5.0 datasheet PDF. This datasheet also includes the PS1117-ADJ variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

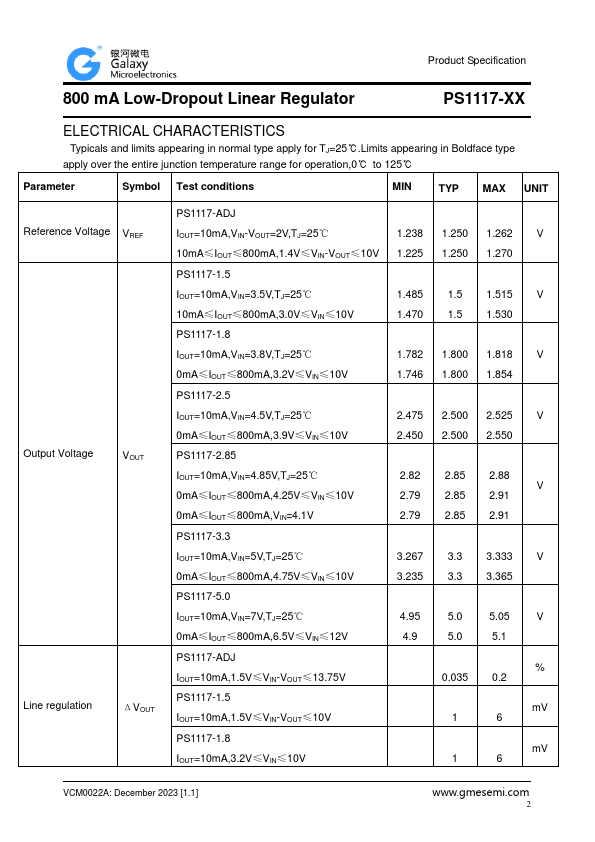

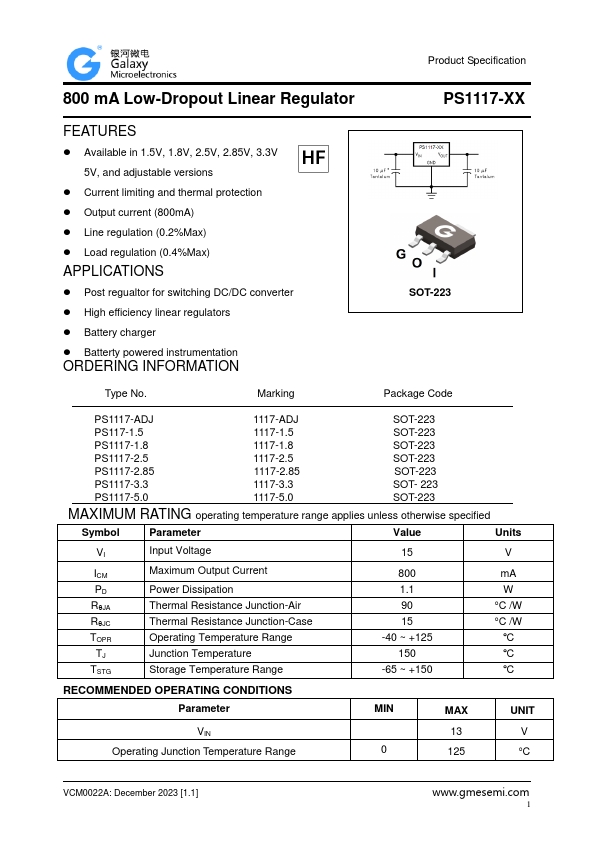

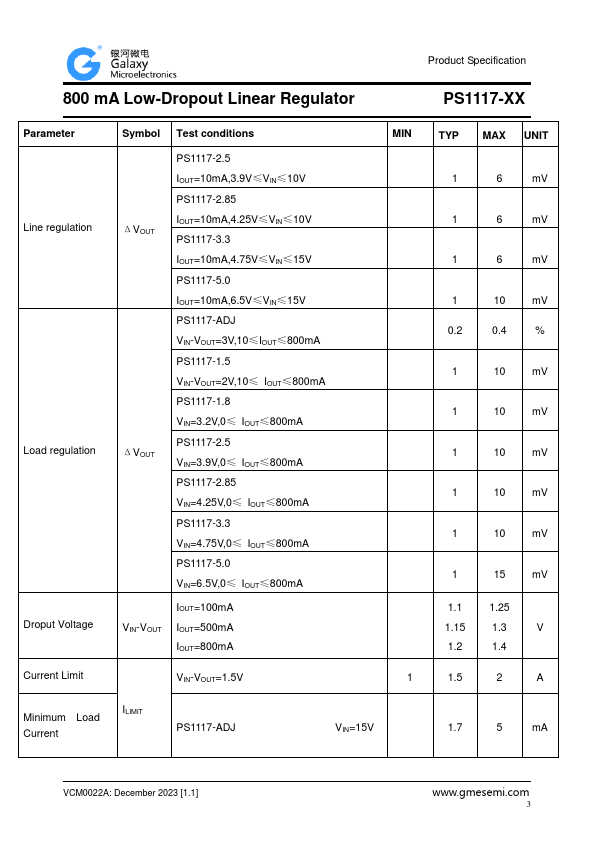

PS1117-5.0 800ma low-dropout linear regulator by Galaxy Microelectronics - Datasheet Preview

Datasheet Details

Part number	PS1117-5.0
Manufacturer	Galaxy Microelectronics
File Size	310.77 KB
Description	800mA Low-Dropout Linear Regulator
Download	PS1117-5.0 Download (PDF)

Key Features

Available in 1.5V, 1.8V, 2.5V, 2.85V, 3.3V 5V, and adjustable versions.
Current limiting and thermal protection.
Output current (800mA).
Line regulation (0.2%Max).
Load regulation (0.4%Max).
