PXT2222A - NPN Switching Transistor

Datasheet Summary

Features

  • High current.
  • Low voltage. Pb Lead-free.

📥 Download Datasheet

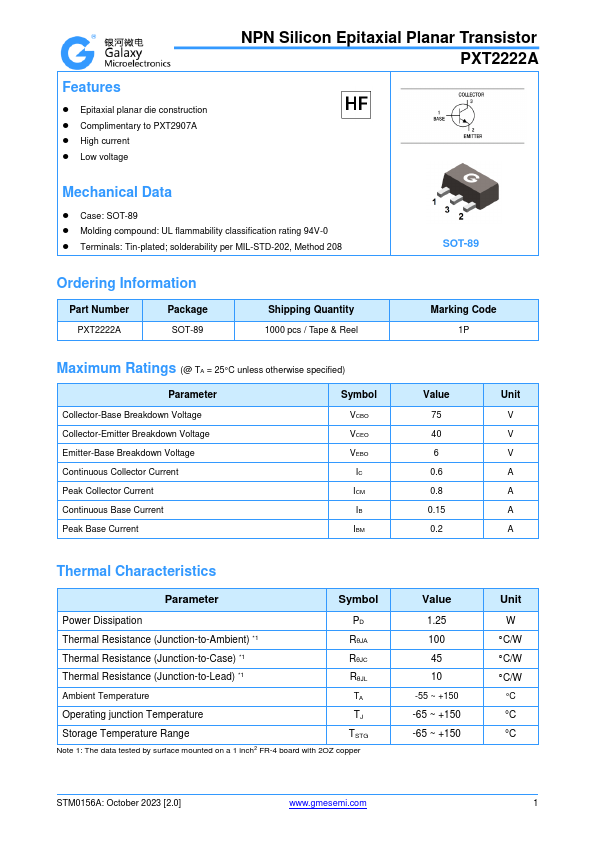

Datasheet preview – PXT2222A

Datasheet Details

Part number PXT2222A
Manufacturer GME
File Size 179.43 KB
Description NPN Switching Transistor
Datasheet download datasheet PXT2222A Datasheet

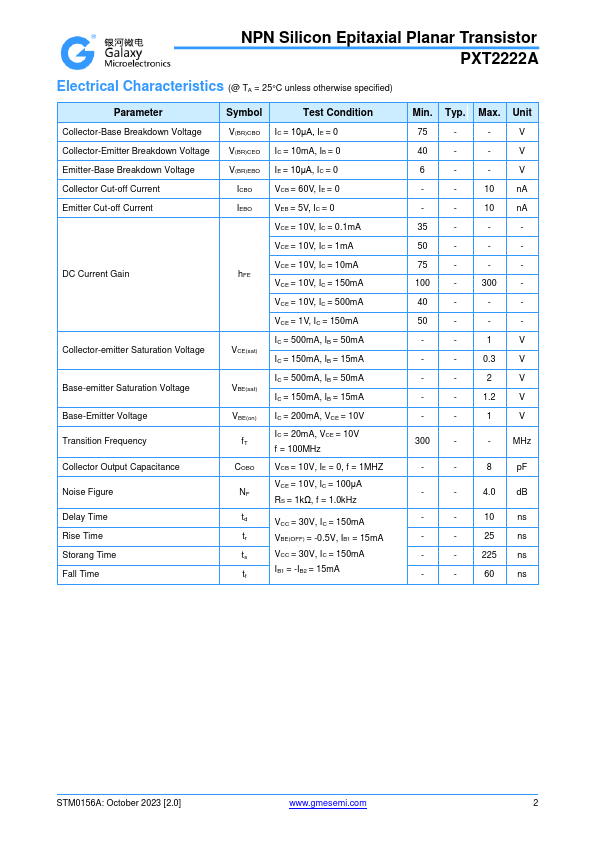

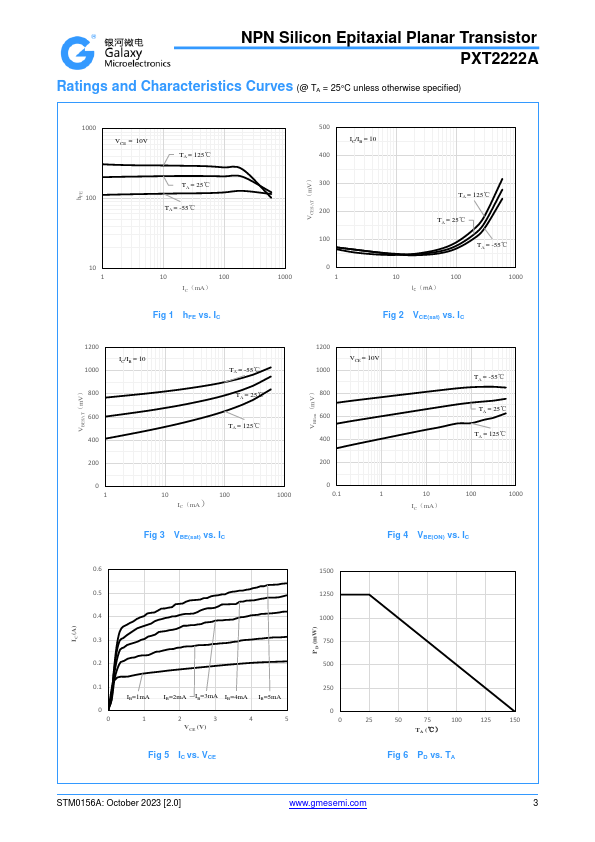

Additional preview pages of the PXT2222A datasheet.

📁 Similar Datasheet

  • PXT2222A - NPN switching transistor (NXP)
  • PXT2222A - NPN Transistors (Kexin)
  • PXT2222A - NPN switching transistors (nexperia)
  • PXT2222A - NPN transistor (LGE)
  • PXT2222A - Plastic-Encapsulate Transistors (WILLAS)
  • PXT2222 - NPN switching transistor (NXP)
  • PXT2907 - PNP switching transistor (NXP)
  • PXT2907A - PNP switching transistor (NXP)
  • PXT2907A - PNP switching transistor (nexperia)
  • PXT2907A - PNP Transistors (Kexin)
Other Datasheets by GME
  • PXT2907A - PNP General Purpose Amplifier
  • PXT3904 - NPN Switching Transistor
  • PXT3906 - PNP Switching Transistor
  • PXT8050 - PLASTIC-ENCAPSULATE TRANSISTORS
  • PXT8550 - PLASTIC-ENCAPSULATE TRANSISTORS

Full PDF Text Transcription

Click to expand full text
NPN Switching Transistor FEATURES  High current.  Low voltage. Pb Lead-free APPLICATIONS  General purpose switching and linear amplification. Production specification PXT2222A ORDERING INFORMATION Type No. Marking PXT2222A 1P SOT-89 Package Code SOT-89 MAXIMUM RATING @ Ta=25℃ unless otherwise specified Symbol Parameter Value VCBO VCEO Collector-Base Voltage Collector-Emitter Voltage 75 40 VEBO IC Emitter-Base Voltage Collector Current -Continuous 6 600 ICM Peak Collector Current IBM Peak Base Current 800 200 Ptot Total Power Dissipation 1.25 Tj Junction Temperature Tstg Storage Temperature 150 -65 to +150 Unit V V V mA mA mA W ℃ ℃ E099 Rev.A www.gmesemi.
