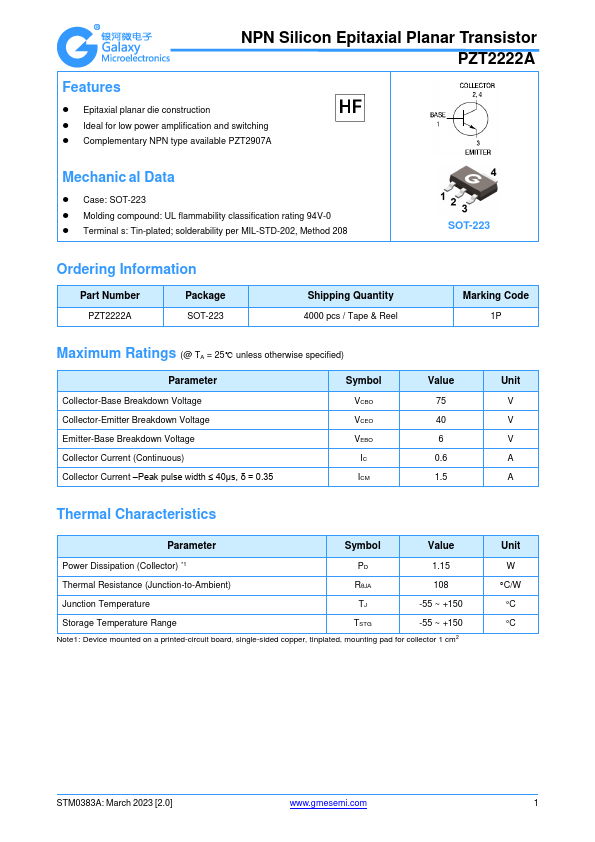

PZT2222A Datasheet NPN Silicon Epitaxial Planar Transistor

Manufacturer: Galaxy Microelectronics

Overview: NPN Silicon Epitaxial Planar Transistor PZT2222A.

Datasheet Details

Part number	PZT2222A
Manufacturer	Galaxy Microelectronics
File Size	417.02 KB
Description	NPN Silicon Epitaxial Planar Transistor
Datasheet	PZT2222A-GME.pdf

Epitaxial planar die construction.
Ideal for low power amplification and switching.
Complementary NPN type available PZT2907A Mechanic al Data.
Case: SOT-223.
Molding compound: UL flammability classification rating 94V-0.
Terminal s: Tin-plated; solderability per MIL-STD-202, Method 208 SOT-223 Ordering Information Part Number PZT2222A Package SOT-223 Shipping Quantity 4000 pcs / Tape & Reel Marking Code 1P Maximum Ratings (@ TA = 25℃ unless otherwise speci.
