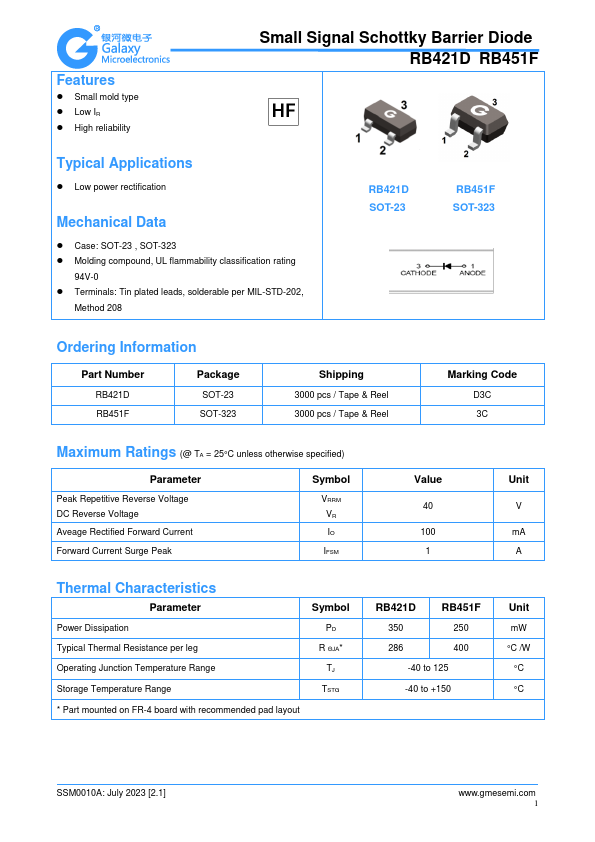

RB421D
RB421D is Small Signal Schottky Barrier Diode manufactured by Galaxy Microelectronics.
Features
- Small mold type
- Low IR
- High reliability
Small Signal Schottky Barrier Diode RB421D RB451F
Typical Applications
- Low power rectification
Mechanical Data

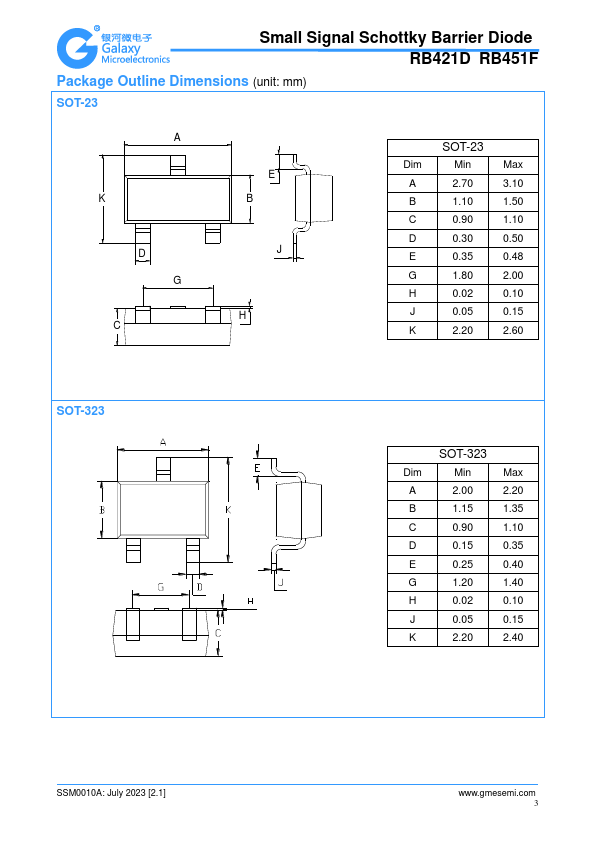

- Case: SOT-23 , SOT-323
- Molding pound, UL flammability classification rating
94V-0
- Terminals: Tin plated leads, solderable per MIL-STD-202,
Method 208
RB421D SOT-23
RB451F SOT-323
Ordering Information
Part Number
RB421D RB451F
Package
SOT-23 SOT-323
Shipping
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
D3C 3C
Maximum Ratings (@ TA = 25°C unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage DC Reverse Voltage Aveage Rectified Forward Current Forward Current Surge Peak
Symbol
VRRM VR IO IFSM
Value
40 100
Unit
V m A A
Thermal Characteristics
Parameter
Symbol
Power Dissipation
Typical Thermal Resistance per...
