RB421D - 40 Volts 0.1 Amp Surface Mount Schottky Barrier Diode

Datasheet Summary

Features

  •    omponents 21201 Itasca Street Chatsworth    !"# $ %    !"# RB421D  Low VF ( VF=0.45V Typ at 100mA ) High reliability Small surface mounting type ( SMD3 ) 0.1 Amp Surface Mount Schottky Barrier Diode Mechanical Data.
  • Case :SOT-346,Molded Plastic Low power rectification Silicon epitaxial planar L A 40 Volts SOT-346 Maximum Ratings.
  • Operating Junct.

📥 Download Datasheet

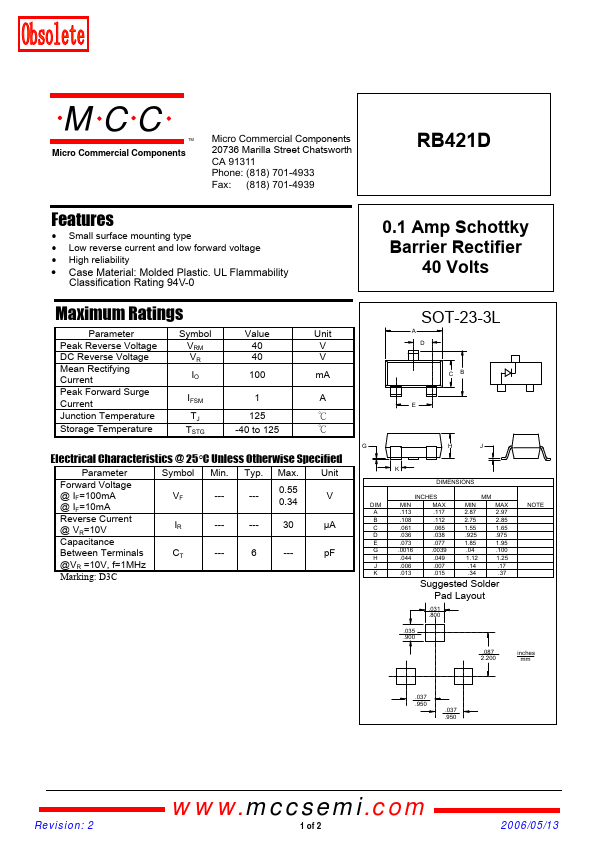

Datasheet preview – RB421D

Datasheet Details

Part number RB421D
Manufacturer Micro Commercial Components
File Size 152.10 KB
Description 40 Volts 0.1 Amp Surface Mount Schottky Barrier Diode
Datasheet download datasheet RB421D Datasheet

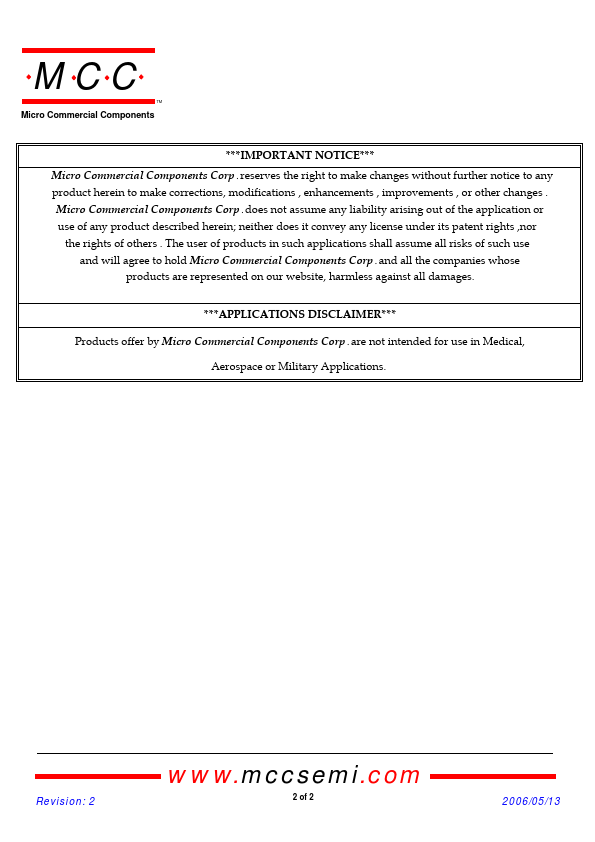

Additional preview pages of the RB421D datasheet.

📁 Similar Datasheet

  • RB421D - Schottky barrier Diodes (Transys)
  • RB421D - Schottky Diode (Kexin)
  • RB421D - SCHOTTKY BARRIER DIODE (JCET)
  • RB421D - Schottky barrier diode (Rohm)
  • RB421D - Schottky barrier Diodes (WEJ)
  • RB421DFH - Schottky Barrier Diode (ROHM)
  • RB420D - Schottky barrier diode (Rohm)
  • RB420D - Schottky barrier Diodes (WEJ)
  • RB420D - Schottky barrier diode (Kexin)
  • RB420D - Schottky barrier Diodes (TRANSYS)
Other Datasheets by Micro Commercial Components
  • RB420D - 40 Volts 0.1 Amp Surface Mount Schottky Barrier Diode
  • RB400D - 20 to 40 Volts 0.5 Amp Surface Mount Schottky Barrier Diode
  • RB411 - 20 to 40 Volts 0.5 Amp Surface Mount Schottky Barrier Diode
  • RB411D - 20 to 40 Volts 0.5 Amp Surface Mount Schottky Barrier Diode
  • RB490D - 20 to 40 Volts 1Amp Surface Mount Schottky Barrier Diode
  • RB491D - 20 to 40 Volts 1Amp Surface Mount Schottky Barrier Diode

Full PDF Text Transcription

Click to expand full text
MCC Features • • •   omponents 21201 Itasca Street Chatsworth    !"# $ %    !"# RB421D  Low VF ( VF=0.45V Typ at 100mA ) High reliability Small surface mounting type ( SMD3 ) 0.1 Amp Surface Mount Schottky Barrier Diode Mechanical Data • • • Case :SOT-346,Molded Plastic Low power rectification Silicon epitaxial planar L A 40 Volts SOT-346 Maximum Ratings • • Operating Junction Temperature: 125°C Storage Temperature: -40°C to +125°C MCC Catalog Number RB421D Device Marking Maximum Recurrent Peak Reverse Voltage 40V Maximum RMS Voltage 28V Maximum DC Blocking Voltage 40V S 2 3 1 B 3 CATHODE 2 ANODE D G C H DIMENSIONS INCHES DIM A B C D G H J K L S MIN .106 .051 .039 .014 .067 .000 .004 .008 .049 .089 MAX .122 .
