Galaxy Century Microelectronics RB451F
Small Signal Schottky Barrier Diode
| Part No. | RB451F |
|---|---|
| Datasheet | RB451F Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Small Signal Schottky Barrier Diode |
| Buy | Stock & Price |

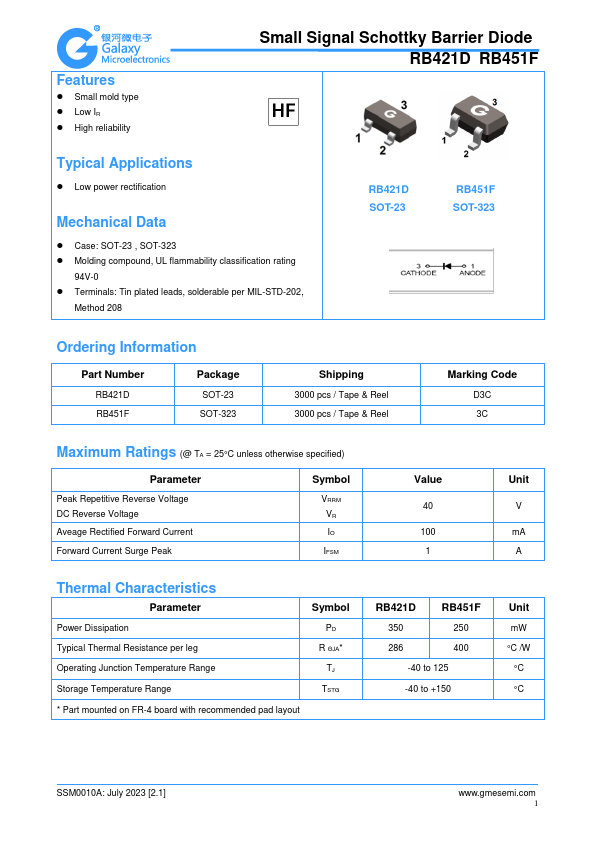

FEATURES
● Small mold type● Low IR
● High reliability Small Signal Schottky Barrier Diode RB421D RB451F Typical
APPLICATIONS
● Low power rectificationMECHANICAL DATA
● Case: SOT-23 , SOT-323● Molding compound, UL flammability classification rating 94V-0
● Terminals: Tin plated leads, solderable per MIL-STD-202, Method 208 RB421D SOT-23 RB451F SOT-323 Ordering Information Part Number RB421D RB451F Package SOT-23 SOT-323 Shipping 3000 pcs / Tape & Reel 3000 pcs / Tape & Reel Marking Code D3C 3C
MAXIMUM RATINGS
(@ TA = 25°C unless otherwise specified) Parameter Peak Repetitive Reverse Voltage DC Reverse Voltage Aveage Rectified Forward Current Forward Current Surge Peak Symbol VRRM VR IO IFSM Value 40 100 1 Unit V mA A Thermal Characteristics Parameter Symbol Power Dissipation PD Typical Thermal Resistance per leg R ΘJA* Operating Junction Temperature Range TJ Storage Temperature Range TSTG * Part mounted on FR-4 board with recommended pad layout RB421D RB451F 350 250 286 400 -40 to 12...
