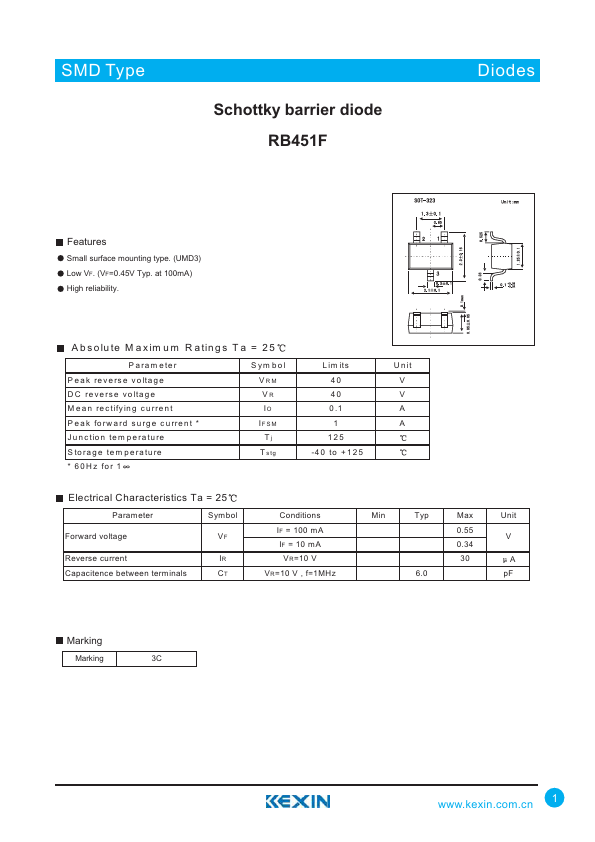

RB451F Datasheet PDF

FEATURES

Small surface mounting type. (UMD3) Low VF. (VF=0.45V Typ. at 100mA) High reliability. A b so lu te M a xim u m R a tin g s T a = 2 5 P aram eter P eak reverse voltage D C reverse voltage M ean rectifying current P eak forward surge current * Junction tem perature S torage tem perature * 60H z for 1 Sym bol VRM VR IO IFSM Tj T stg Lim its 40 40 0.1 1 125 -40 to +125 U nit V V A A

ELECTRICAL CHARACTERISTICS

Ta = 25 P aram eter Symbol Forward voltage VF Reverse current IR Capacitence between terminals CT Conditions IF = 100 mA IF = 10 mA VR=10 V VR=10 V , f=1MHz Min Typ Max Unit 0.55 V 0.34 30 A 6.0 pF Marking Marking 3C 1
