RB495D
RB495D is Schottky barrier diode manufactured by Galaxy Microelectronics.

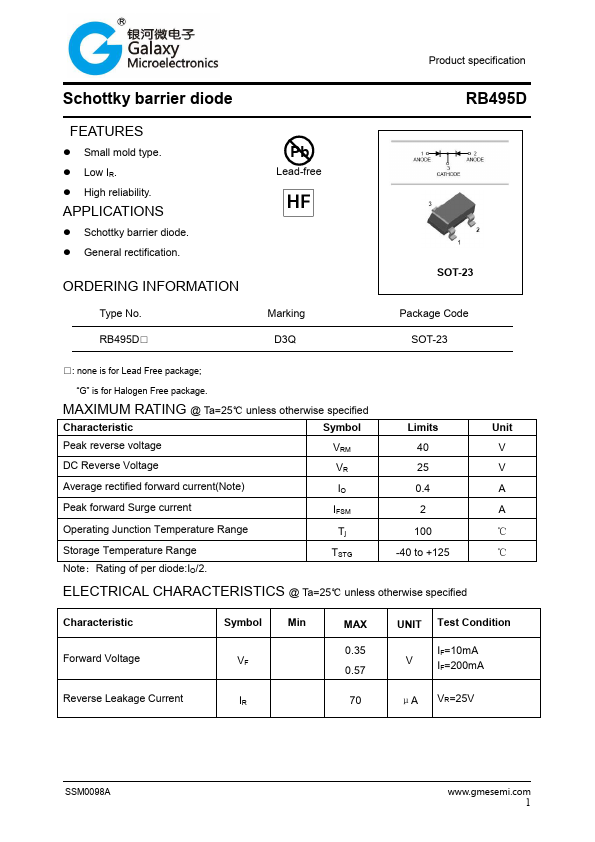

Product specification
Schottky barrier diode
Features
- Small mold type.
- Low IR.
- High reliability.
APPLICATIONS
- Schottky barrier diode.
- General rectification.
ORDERING INFORMATION
Type No.
RB495D-
Pb
Lead-free
Marking D3Q
SOT-23
Package Code SOT-23
- : none is for Lead Free package;
“G” is for Halogen Free package.
MAXIMUM RATING @ Ta=25℃ unless otherwise specified
Characteristic
Symbol
Peak reverse voltage
DC Reverse Voltage
Average rectified forward current(Note)
Peak forward Surge current
IFSM
Operating Junction Temperature Range
Tj
Storage Temperature Range Note：Rating of per...
