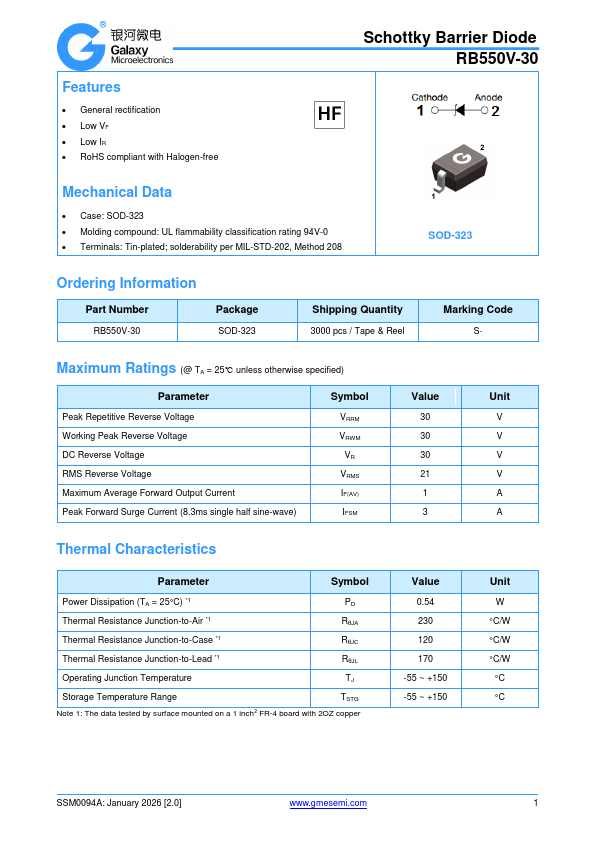

RB550V-30
RB550V-30 is Schottky Barrier Diode manufactured by Galaxy Microelectronics.
Features
- General rectification
- Low VF
- Low IR
- RoHS pliant with Halogen-free
Schottky Barrier Diode RB550V-30
Mechanical Data
- Case: SOD-323
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
SOD-323
Ordering Information
Part Number
Package
SOD-323
Shipping Quantity
3000 pcs / Tape & Reel
Marking Code
S-
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Reverse Voltage RMS Reverse Voltage Maximum Average Forward Output Current Peak Forward Surge Current (8.3ms single half sine-wave)
Symbol
VRRM VRWM
VR...
