SJM90R300F Datasheet | Galaxy Microelectronics

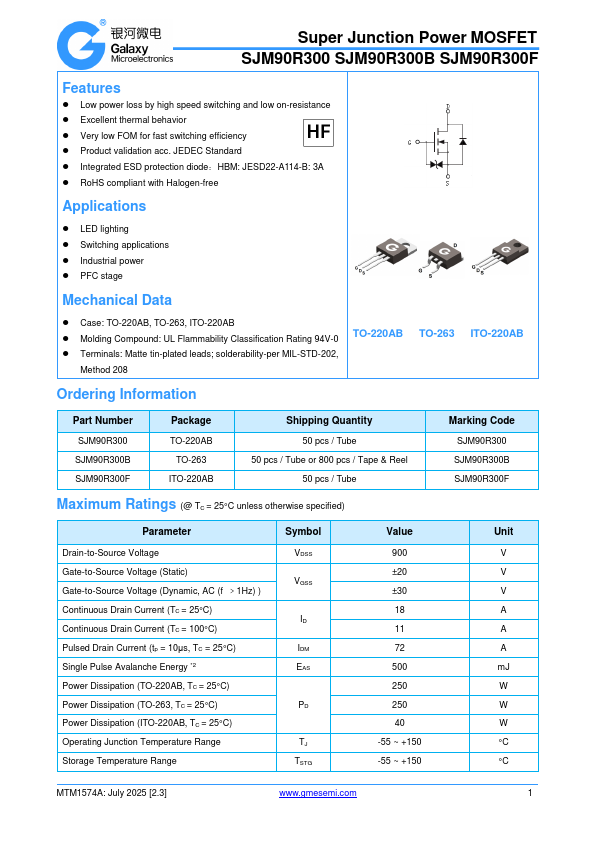

Features - Low power loss by high speed switching and low on-resistance - Excellent thermal behavior - Very low FOM for fast switching efficiency - Product validation acc. JEDEC Standard - Integrated ESD protection diode：HBM: JESD22-A114-B: 3A - Ro HS pliant with Halogen-free Applications - LED lighting - Switching applications - Industrial power - PFC stage Mechanical Data - Case: TO-220AB, TO-263, ITO-220AB - Molding pound: UL Flammability Classification Rating 94V-0 - Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TO-220AB TO-263 ITO-220AB Ordering Information Part Number SJM90R300 SJM90R300B SJM90R300F Package TO-220AB TO-263 ITO-220AB Shipping Quantity 50 pcs / Tube 50 pcs / Tube or 800 pcs / Tape & Reel 50 pcs / Tube Maximum Ratings (@ TC = 25°C unless otherwise specified) Parameter Drain-to-Source Voltage Gate-to-Source Voltage (Static) Gate-to-Source Voltage (Dynamic, AC (f ﹥1Hz) ) Continuous Drain Current (TC = 25°C) Continuous Drain Current (TC = 100°C) Pulsed Drain Current (tp = 10μs, TC = 25°C) Single Pulse Avalanche Energy - 2 Power Dissipation (TO-220AB, TC = 25°C) Power Dissipation (TO-263, TC = 25°C) Power Dissipation (ITO-220AB, TC = 25°C) Operating Junction Temperature Range Storage Temperature Range Symbol VDSS VGSS ID IDM EAS TJ TSTG Value 900 ±20 ±30 18 11 72 500 250 250 40 -55 ~ +150 -55 ~ +150 Marking Code SJM90R300 SJM90R300B SJM90R300F Unit V V V A A A m J W W W °C °C MTM1574A: July 2025 [2.3] .gmesemi....
