SM05 - TVS DIODE ARRAY

Datasheet Summary

Features

  • z 300 watts peak pulse power. (tp=8/20us). z Transient protection for data&power lines to Pb Lead-free IEC 61000-4-2(ESD)15Kv(air),8kV(contanct) IEC 61000-4-4(EFT)40A(tp=5/50ns) IEC 61000-4-5(Lighting)12A(tp=1.2/50us) z Protects one bidirectional line or two unidirectional lines. z Working Voltage: 5V. z Low clamping voltage. z Solid-state silicon avalanche technology. SM05 SOT-23.

📥 Download Datasheet

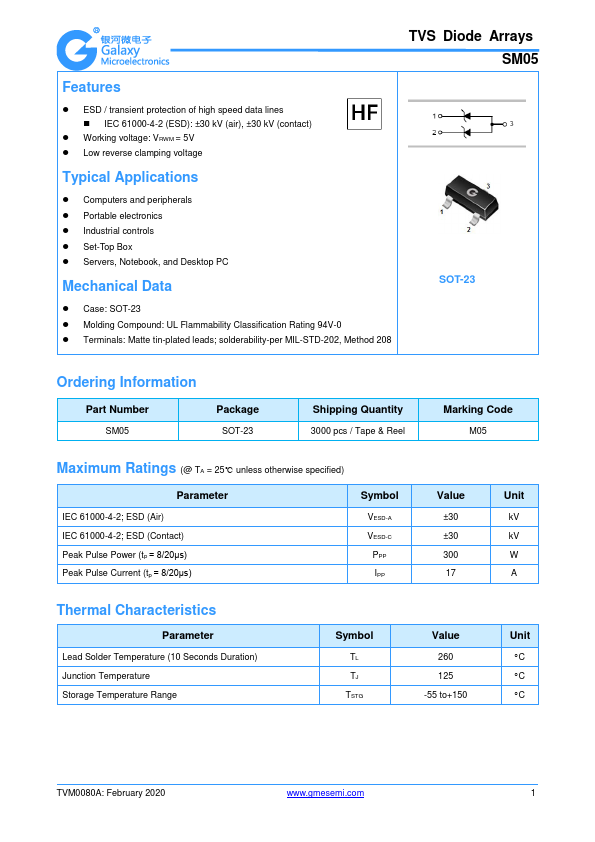

Datasheet preview – SM05

Datasheet Details

Part number SM05
Manufacturer GME
File Size 113.09 KB
Description TVS DIODE ARRAY
Datasheet download datasheet SM05 Datasheet

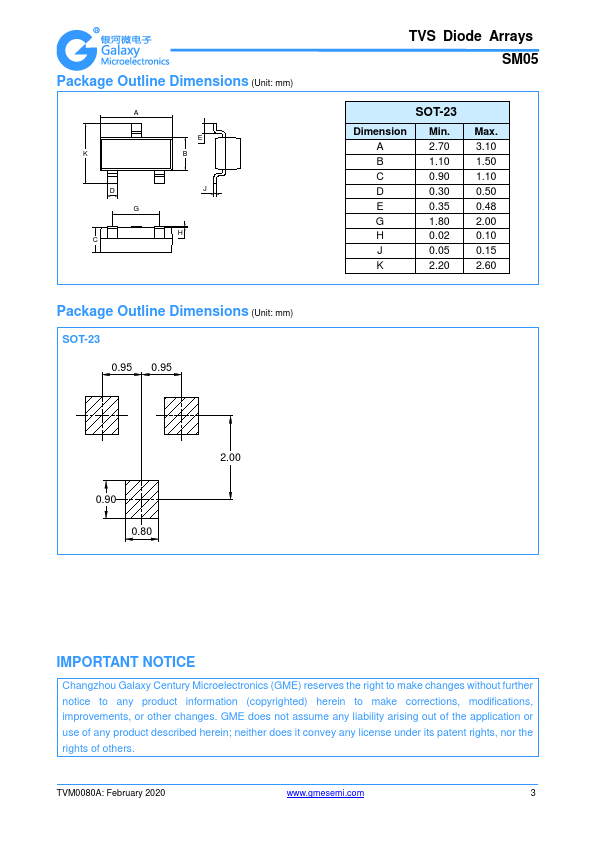

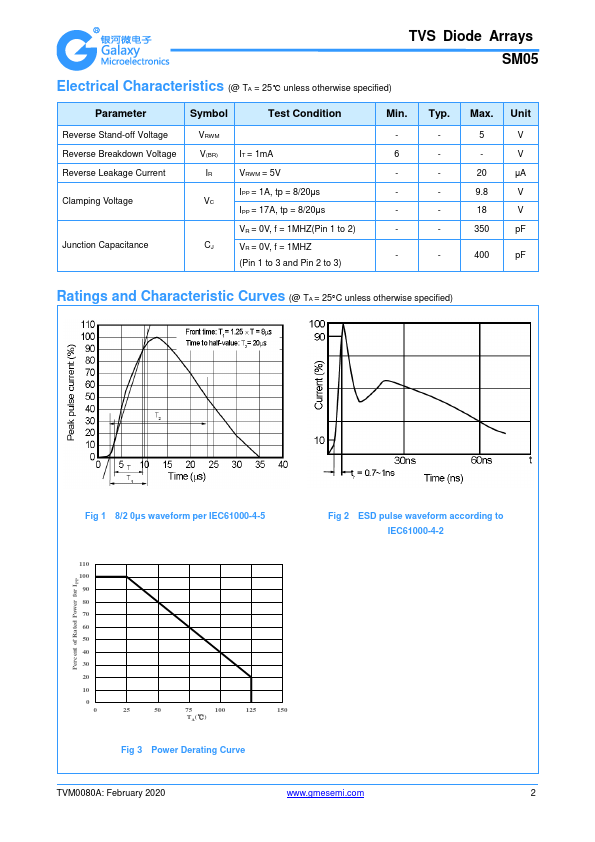

Additional preview pages of the SM05 datasheet.

📁 Similar Datasheet

  • SM05 - Low Capacitance Quad Line ESD Protection Diode Array (Union Semiconductor)
  • SM05 - DUAL SURFACE MOUNT TVS (Diodes)
  • SM05 - TVS Diode Arrays (Littelfuse)
  • SM05 - TVS Diode Array (Semtech)
  • SM05 - Bidirectional/Unidirectional TVS array (Microsemi)
  • SM05 - TVS (MCC)
  • SM05 - TVS Diode Array (Leiditech)
  • SM05 - STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY (KD)
  • SM05 - TVS Diode Array (HTC)
  • SM05-02HTG - TVS Diode Arrays (Littelfuse)
Other Datasheets by GME

    Full PDF Text Transcription

    Click to expand full text
    Production specification TVS DIODE ARRAY FEATURES z 300 watts peak pulse power.(tp=8/20us). z Transient protection for data&power lines to Pb Lead-free IEC 61000-4-2(ESD)15Kv(air),8kV(contanct) IEC 61000-4-4(EFT)40A(tp=5/50ns) IEC 61000-4-5(Lighting)12A(tp=1.2/50us) z Protects one bidirectional line or two unidirectional lines. z Working Voltage: 5V. z Low clamping voltage. z Solid-state silicon avalanche technology. SM05 SOT-23 APPLICATIONS z Cellular Handsets and Accessories z Portable Electronics z Industrial Controls z Set-Top Box z Servers,Notebook,and Desktop PC ORDERING INFORMATION Type No.
