SM05 - TVS Diode Arrays

Datasheet Summary

Description

The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges.

📥 Download Datasheet

Datasheet preview – SM05

Datasheet Details

Part number SM05
Manufacturer Littelfuse
File Size 380.77 KB
Description TVS Diode Arrays
Datasheet download datasheet SM05 Datasheet
Additional preview pages of the SM05 datasheet.

📁 Similar Datasheet

  • SM05 - Low Capacitance Quad Line ESD Protection Diode Array (Union Semiconductor)
  • SM05 - DUAL SURFACE MOUNT TVS (Diodes)
  • SM05 - TVS Diode Array (Semtech)
  • SM05 - TVS DIODE ARRAY (GME)
  • SM05 - Bidirectional/Unidirectional TVS array (Microsemi)
  • SM05 - TVS (MCC)
  • SM05 - TVS Diode Array (Leiditech)
  • SM05 - STANDARD CAPACITANCE TVS ARRAY / ESD ARRAY (KD)
  • SM05 - TVS Diode Array (HTC)
  • SM05.TCT - TVS Diode Array (UMW)
Other Datasheets by Littelfuse

Full PDF Text Transcription

Click to expand full text

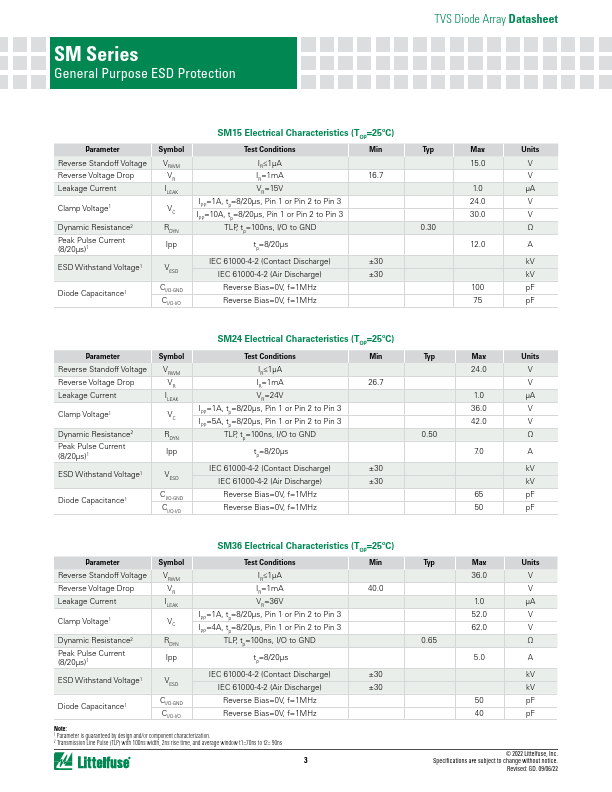

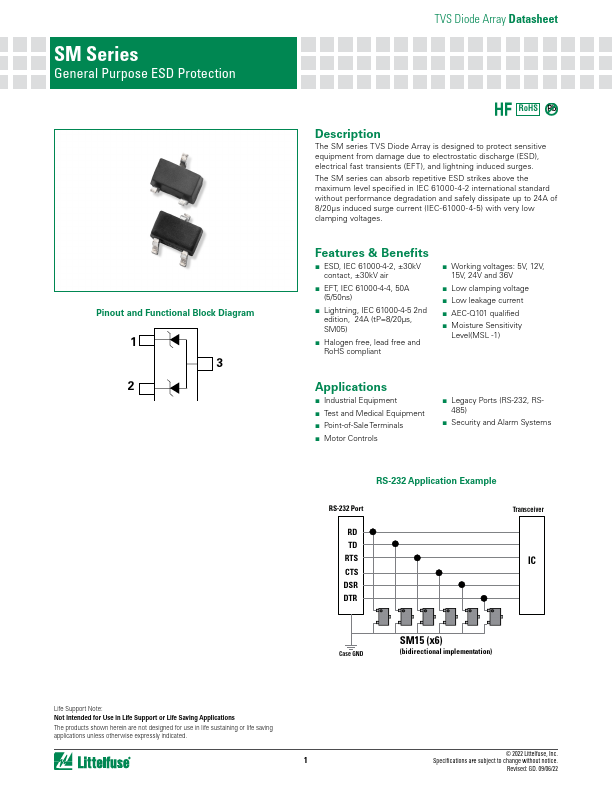

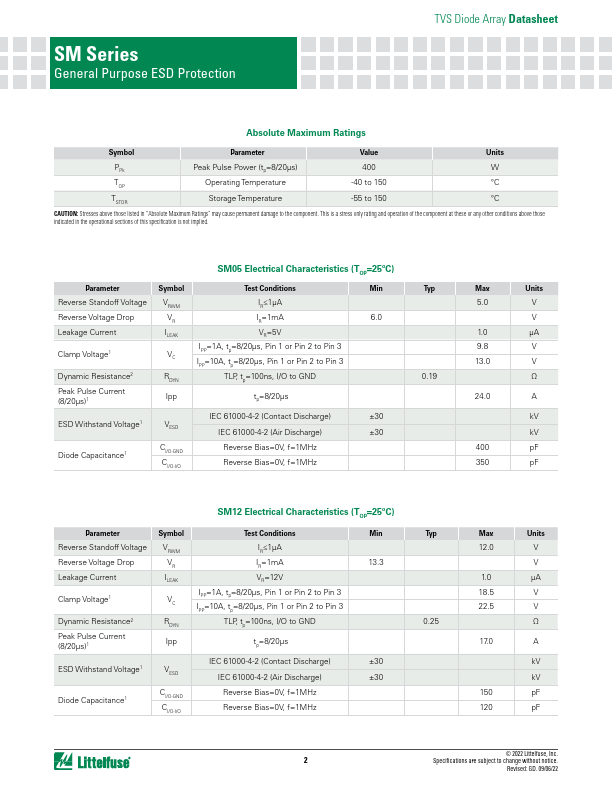

TVS Diode Arrays (SPA® Diodes) General Purpose ESD Protection - SM05 through SM36 SM Series 400W TVS Diode Array RoHS Pb GREEN Description The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SM series can absorb repetitive ESD strikes above the maximum level specified in the IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 24A of 8/20us induced surge current (IEC61000-4-5, 2nd Edition) with very low clamping voltages.
