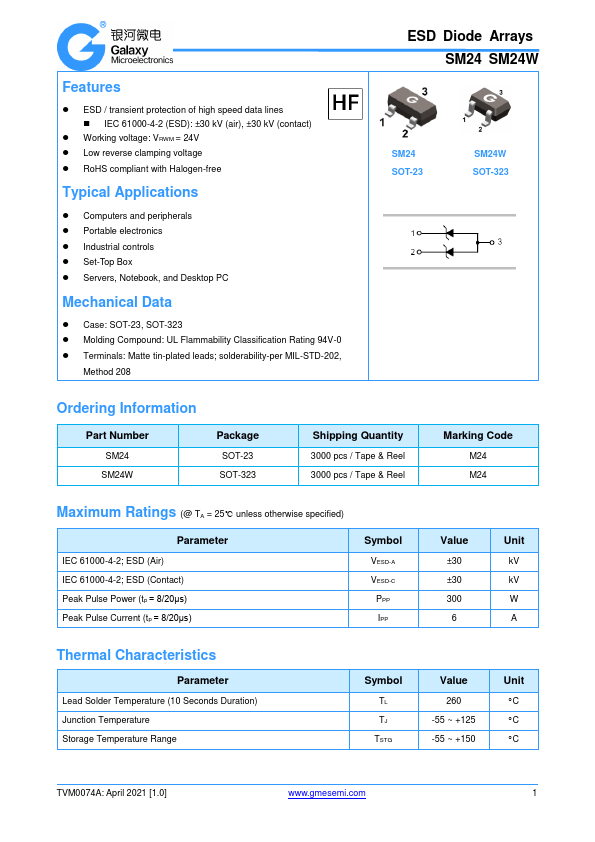

SM24W
Features
- ESD / transient protection of high speed data lines
- IEC 61000-4-2 (ESD): ±30 k V (air), ±30 k V (contact)
- Working voltage: VRWM = 24V
- Low reverse clamping voltage
- Ro HS pliant with Halogen-free
Typical Applications
- puters and peripherals
- Portable electronics
- Industrial controls
- Set-Top Box
- Servers, Notebook, and Desktop PC
Mechanical Data

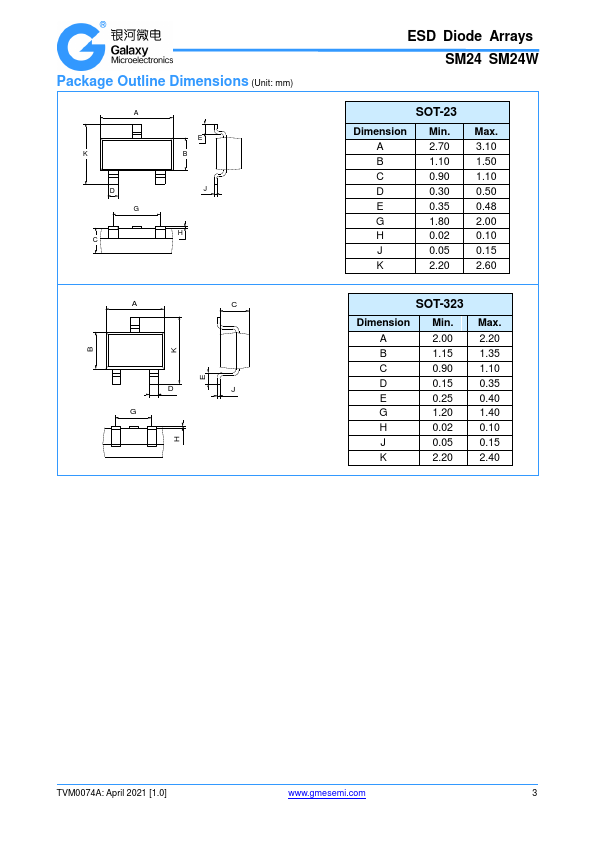

- Case: SOT-23, SOT-323
- Molding pound: UL Flammability Classification Rating 94V-0
- Terminals: Matte tin-plated leads; solderability-per MIL-STD-202,
Method 208
ESD Diode Arrays SM24 SM24W
SM24 SOT-23
SM24W SOT-323
Ordering Information
Part Number
SM24 SM24W
Package
SOT-23 SOT-323
Shipping Quantity
3000 pcs / Tape & Reel 3000 pcs / Tape & Reel
Marking Code
M24 M24
Maximum Ratings (@ TA = 25℃ unless otherwise specified)
Parameter
IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs)
Symbol
VESD-A VESD-C
PPP IPP
Value
±30 ±30 300
Unit k V k V W...
