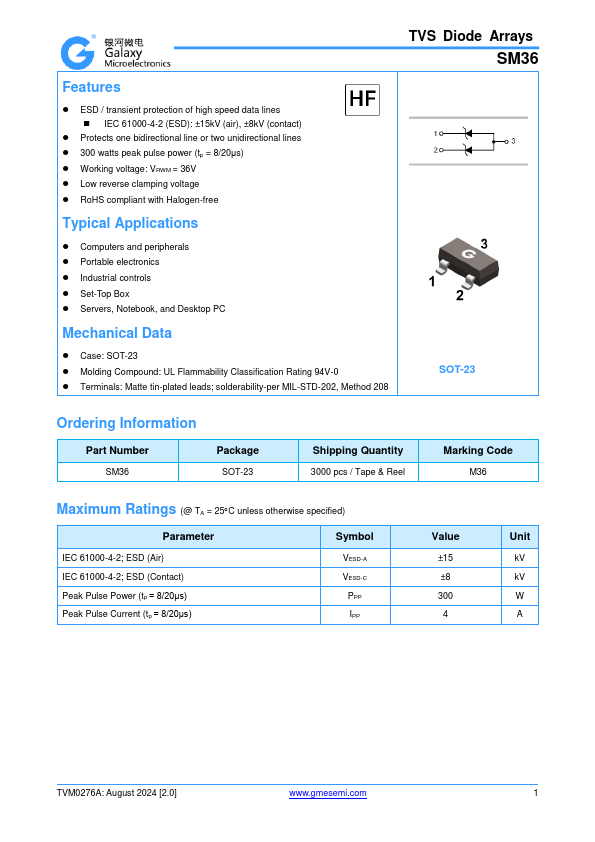

Galaxy Century Microelectronics SM36
TVS Diode Arrays
| Part No. | SM36 |
|---|---|
| Datasheet | SM36 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | TVS Diode Arrays |
| Buy | Stock & Price |
FEATURES
● ESD / transient protection of high speed data lines● IEC 61000-4-2 (ESD): ±15kV (air), ±8kV (contact)
● Protects one bidirectional line or two unidirectional lines
● 300 watts peak pulse power (tp = 8/20μs)
● Working voltage: VRWM = 36V
● Low reverse clamping voltage
● RoHS compliant with Halogen-free Typical
APPLICATIONS
● Computers and peripherals● Portable electronics
● Industrial controls
● Set-Top Box
● Servers, Notebook, and Desktop PC
MECHANICAL DATA
● Case: SOT-23● Molding Compound: UL Flammability Classification Rating 94V-0
● Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 TVS Diode Arrays SM36 SOT-23 Ordering Information Part Number SM36 Package SOT-23 Shipping Quantity 3000 pcs / Tape & Reel Marking Code M36
MAXIMUM RATINGS
(@ TA = 25C unless otherwise specified) Parameter IEC 61000-4-2; ESD (Air) IEC 61000-4-2; ESD (Contact) Peak Pulse Power (tp = 8/20μs) Peak Pulse Current (tp = 8/20μs) Symbol VESD-A VESD-C PPP IPP Value ±15 ±8...
