Littelfuse SM36

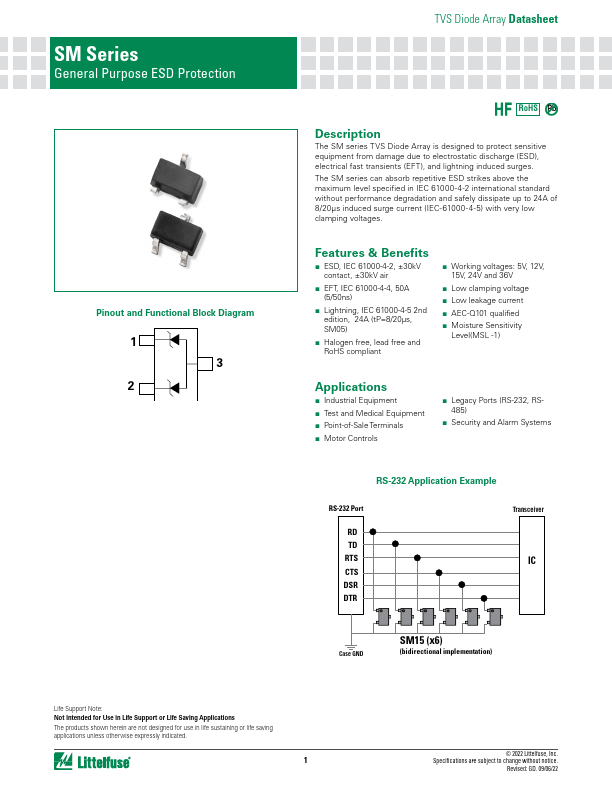

The SM series TVS Diode Array is designed to protect sensitive equipment from damage due to electrostatic discharge (ESD), electrical fast transients (EFT), and lightning induced surges. The SM series can absorb repetitive ESD strikes above the maximum level specified in IEC 61000-4-2 international standard without performance degradation and safely dissipate up to 24A of 8/20µs induced surge current (IEC-61000-4-5) with very low clamping voltages.| Part No. | SM36 |
|---|---|
| Datasheet | SM36 Download |
| Manufacturer |  Littelfuse |
| Description | General Purpose ESD Protection |
| Buy | Stock & Price |

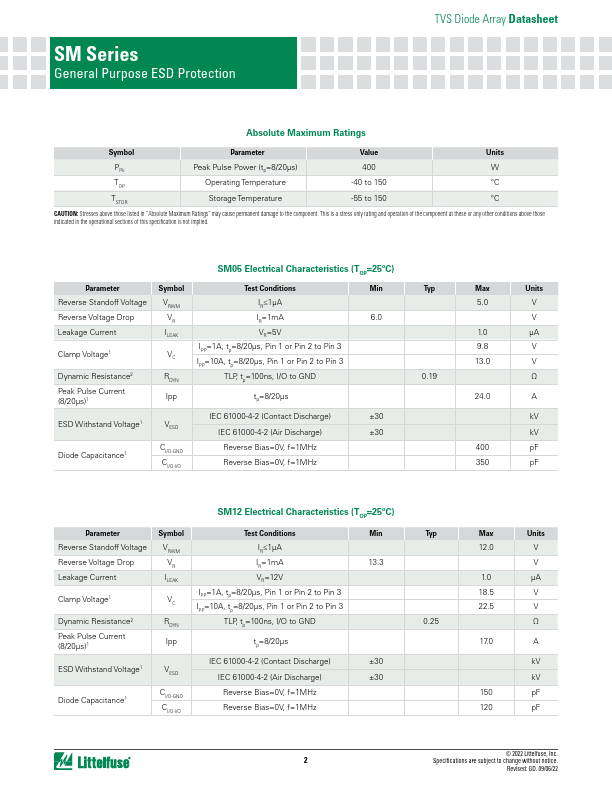

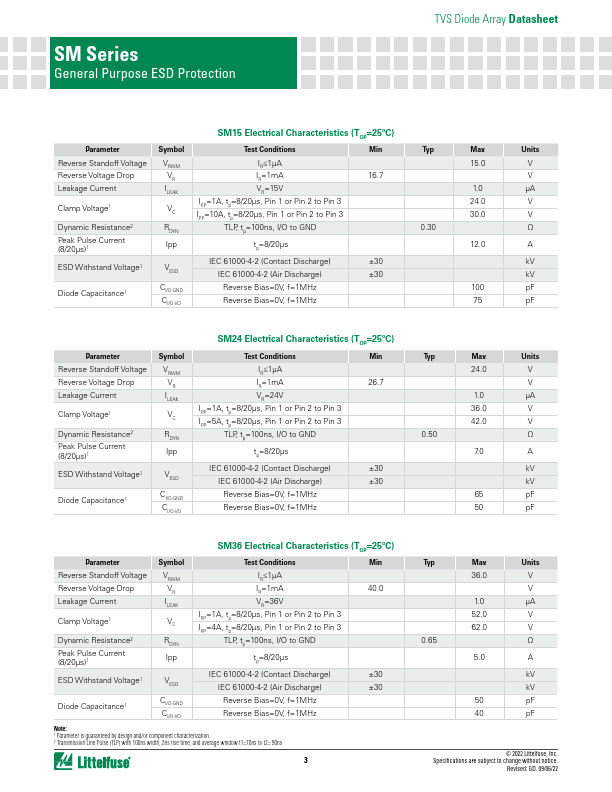

DESCRIPTION
FEATURES & BENEFITS
● ESD, IEC 61000-4-2, ±30kV contact, ±30kV air● EFT, IEC 61000-4-4, 50A (5/50ns)
● Lightning, IEC 61000-4-5 2nd edition, 24A (tP=8/20μs, SM05)
● Halogen free, lead free and RoHS compliant
● Working voltages: 5V, 12V, 15V, 24V and 36V
● Low clamping voltage
● Low leakage current
● AEC-Q101 qualified
● Moisture Sensitivity Level(MSL -1)
APPLICATIONS
● Industrial Equipment● Test and Medical Equipment
● Point-of-Sale Terminals
● Motor Controls
● Legacy Ports (RS-232, RS485)
● Security and Alarm Systems RS-232 Application Example RS-232 Port RD TD RTS CTS DSR DTR Transceiver IC Case GND SM15 (x6) (bidirectional implementation) Life Support Note: Not Intended for Use in Life Support or Life Saving
APPLICATIONS
The products shown herein are not designed for use in life sustaining or life saving applications unless otherwise expressly indicated. 1 © 2022 Littelfuse, Inc. Specifications are subject to change without notice. Revised: GD. 09/06/22 SM Series Gener...
