TBAS316 - Switching Diode

Features

  • Fast switching speed.
  • High conductance.
  • RoHS compliant with Halogen-free.
  • Qualified to AEC-Q101 Standards Mechanical Data.
  • Case: SOD-323.
  • Molding Compound: UL Flammability Classification Rating 94V-0.
  • Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Switching Diode TBAS316 SOD-323 Ordering Information Part Number TBAS316 Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code A6 Maximum Ratings (@ TA = 25°C unle.

📥 Download Datasheet

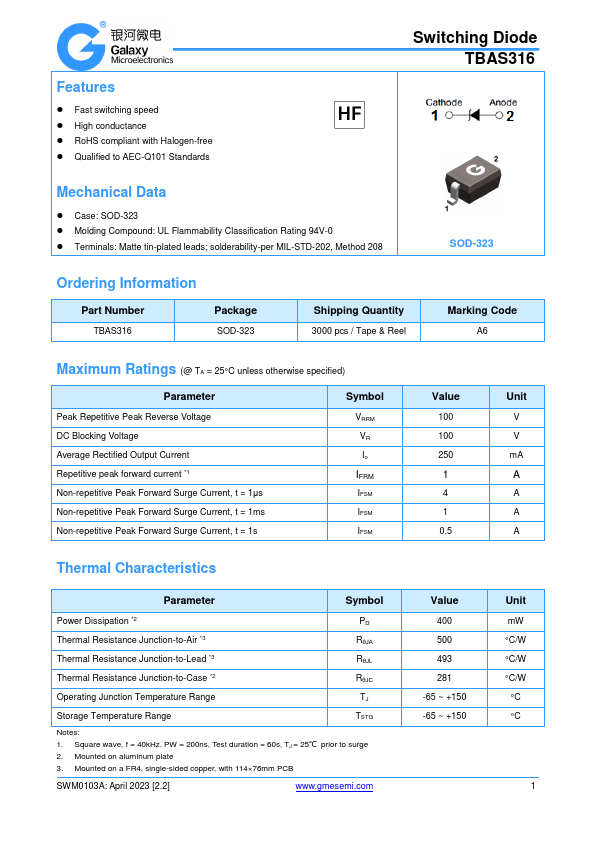

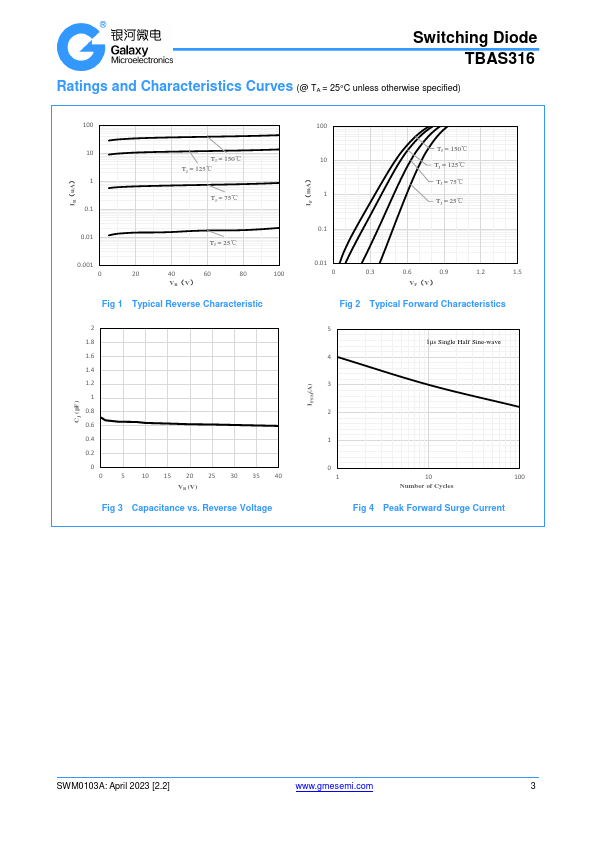

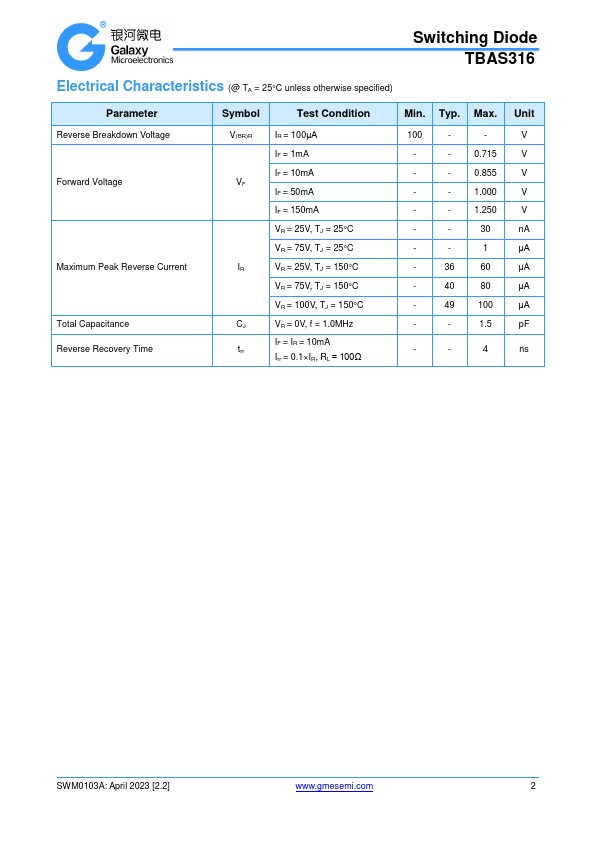

Datasheet preview – TBAS316

📁 Similar Datasheet

Other Datasheets by GME

    Full PDF Text Transcription

    Click to expand full text
    Features  Fast switching speed  High conductance  RoHS compliant with Halogen-free  Qualified to AEC-Q101 Standards Mechanical Data  Case: SOD-323  Molding Compound: UL Flammability Classification Rating 94V-0  Terminals: Matte tin-plated leads; solderability-per MIL-STD-202, Method 208 Switching Diode TBAS316 SOD-323 Ordering Information Part Number TBAS316 Package SOD-323 Shipping Quantity 3000 pcs / Tape & Reel Marking Code A6 Maximum Ratings (@ TA = 25°C unless otherwise specified) Parameter Peak Repetitive Peak Reverse Voltage DC Blocking Voltage Average Rectified Output Current Repetitive peak forward current *1 Non-repetitive Peak Forward Surge Current, t = 1μs Non-repetitive Peak Forward Surge Current, t = 1ms Non-repetitive Peak Forward Surge Current, t = 1s Symbol
