TBC856A

Manufacturer: Galaxy Microelectronics

This datasheet includes multiple variants, all published together in a single manufacturer document.

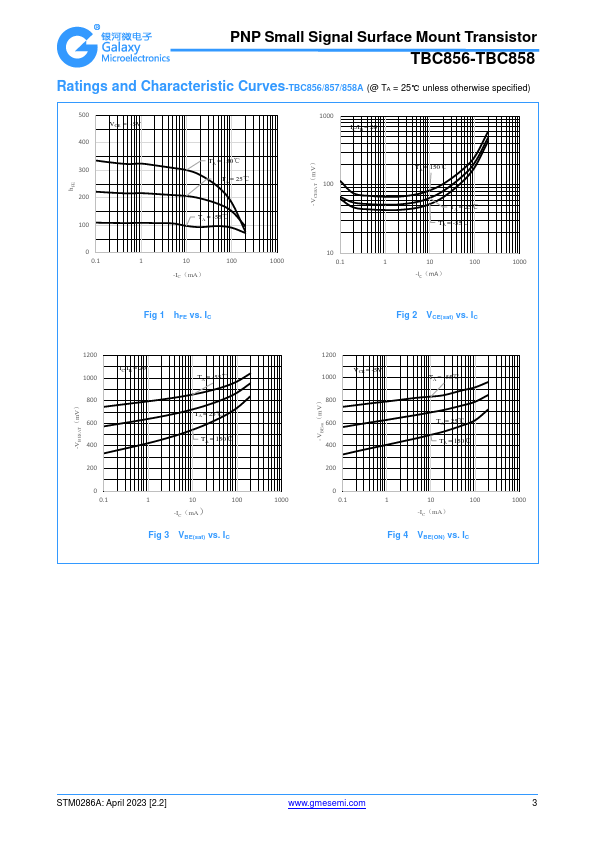

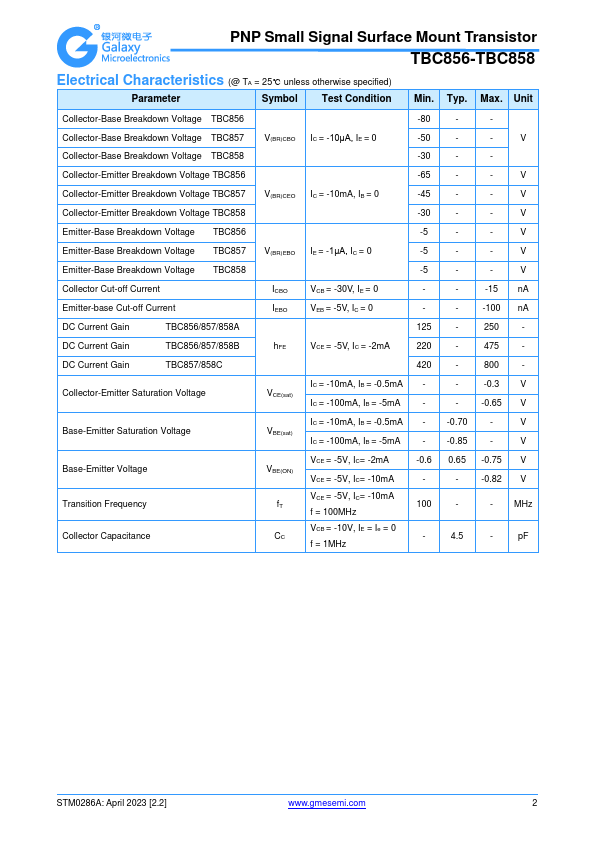

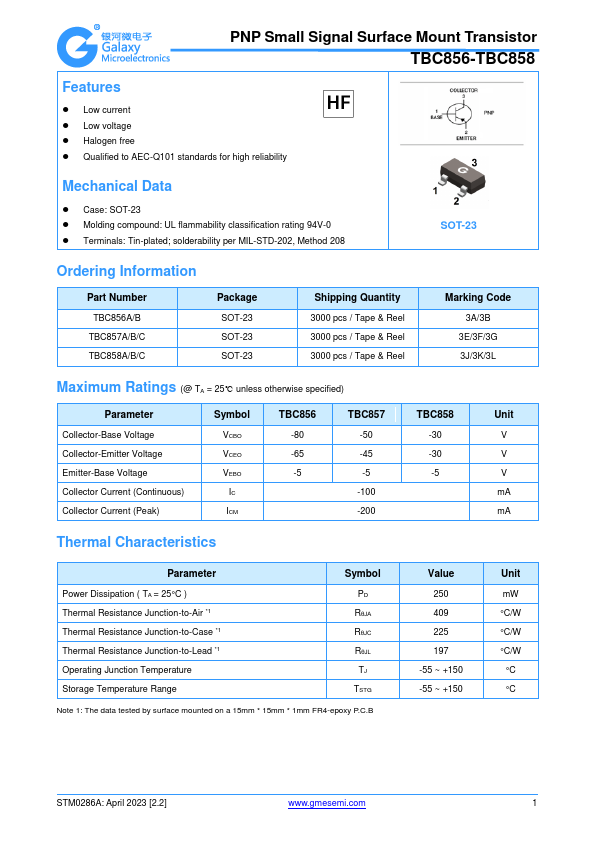

TBC856A datasheet preview

Datasheet Details

Part number	TBC856A
Datasheet	TBC856A TBC856 Datasheet (PDF)
File Size	450.44 KB
Manufacturer	Galaxy Microelectronics
Description	PNP Small Signal Surface Mount Transistor

TBC856A Overview

PNP Small Signal Surface Mount Transistor TBC856-TBC858.

TBC856A Key Features

Low current
Low voltage
Halogen free
Qualified to AEC-Q101 standards for high reliability
Case: SOT-23
Molding pound: UL flammability classification rating 94V-0
Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
1mm FR4-epoxy P.C.B
55 ~ +150 -55 ~ +150
100 nA
