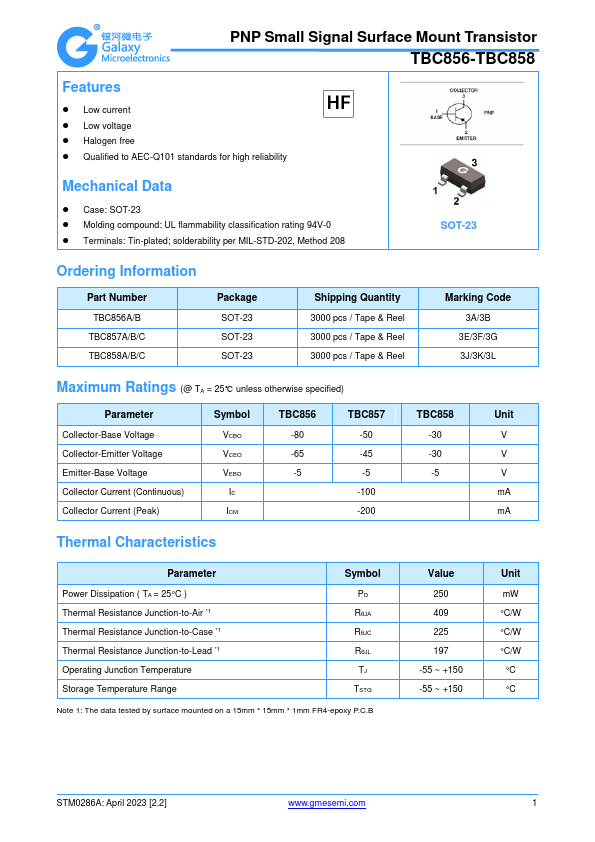

TBC856B Overview
PNP Small Signal Surface Mount Transistor TBC856-TBC858.
TBC856B Key Features
- Low current
- Low voltage
- Halogen free
- Qualified to AEC-Q101 standards for high reliability
- Case: SOT-23
- Molding pound: UL flammability classification rating 94V-0
- Terminals: Tin-plated; solderability per MIL-STD-202, Method 208
- 1mm FR4-epoxy P.C.B
- 55 ~ +150 -55 ~ +150
- 100 nA
